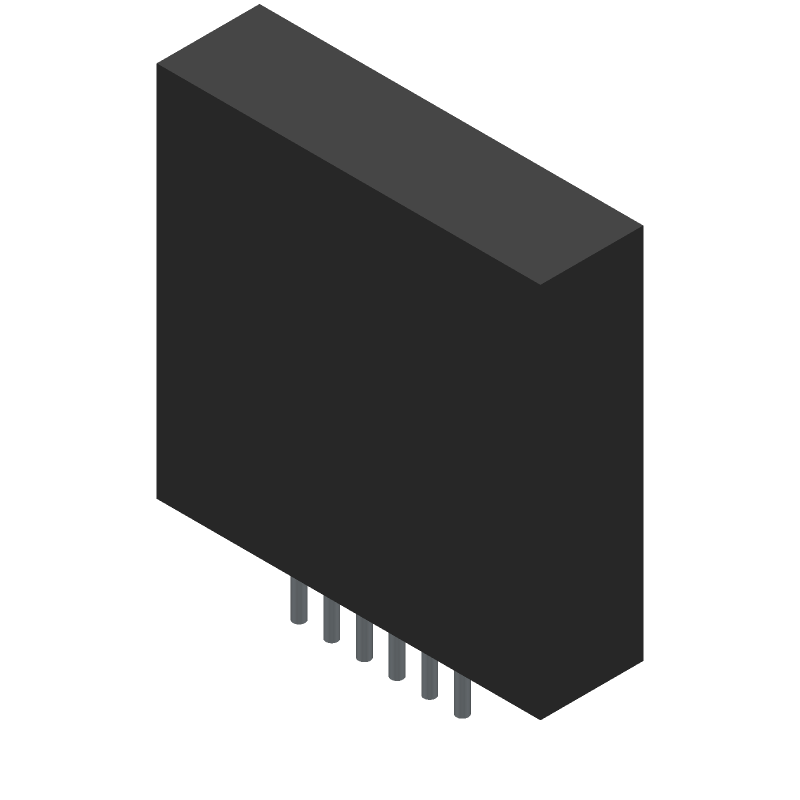

Piezoresistive pressure sensor for general environmental applications. Measures pressure from 0 to 101.5 psi with a 2.50% accuracy. Outputs a voltage range of 0.20-4.70V, operating with a supply voltage between 4.75V and 5.25V. Features a through-hole mounting design and solder termination. Suitable for operation across a wide temperature range, from -40°C to 125°C.
Quick Jump:
Technical Specifications
NXP MPX5700GP technical specifications.
General
Max Operating Temperature
125
Min Operating Temperature
-40
Supply Voltage-Min
4.75
Supply Voltage-Max
5.25
Termination Type
SOLDER
Compliance
RoHS
Yes
Eccn Code
EAR99
HTS Code
8542.39.00.01
REACH
Compliant
Military Spec
False
Datasheet
NXP MPX5700GP Datasheet
Download the complete datasheet for NXP MPX5700GP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
