NXP
NX1117C285Z,115
Low-Drop Out Regulator IC, SOT223 Package, Standard Marking, Reel Pack, SMD, 7"
PackageSC
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
NXP NX1117C285Z,115 technical specifications.
General
Accuracy
1%
Package/Case
SC
Dropout Voltage
1.07V
Lead Free
Lead Free
Min Current Limit
1A
Max Input Voltage
20V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Fixed, Adjustable
Output Voltage
2.85V
Output Voltage Accuracy
1%
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
6mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
NXP NX1117C285Z,115 Datasheet
Download the complete datasheet for NXP NX1117C285Z,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

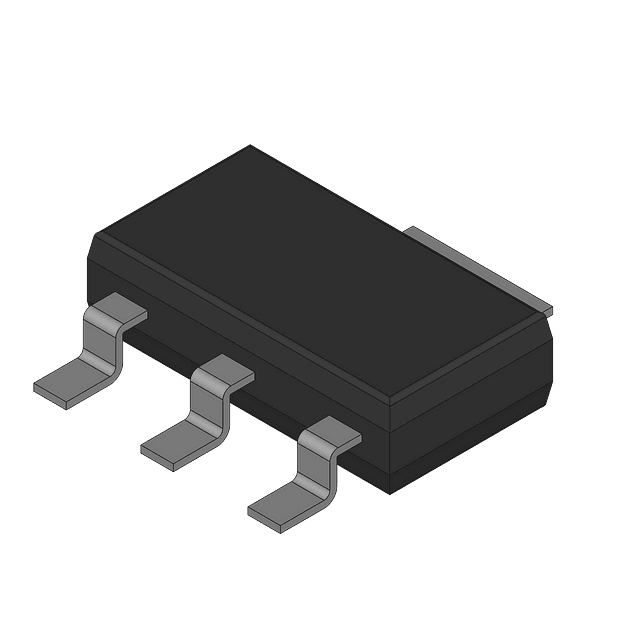

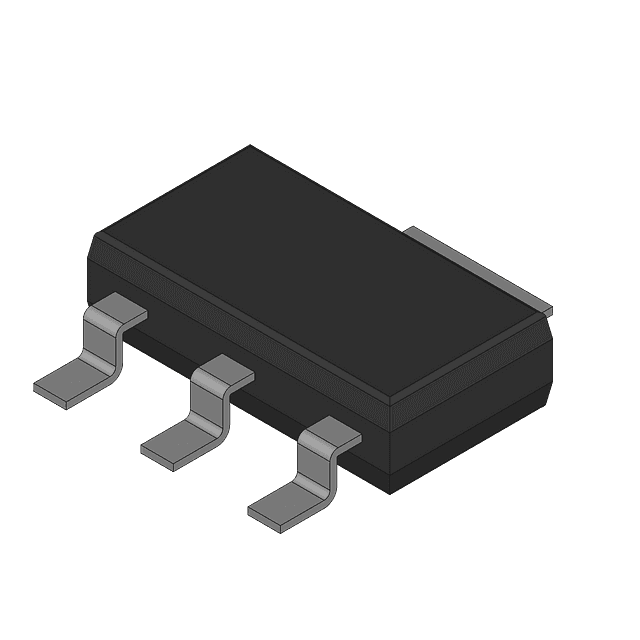

Product Images
