Technical Specifications
NXP NX3L1G66GM,132 technical specifications.
General
-3db Bandwidth
60MHz
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
250mW
Max Supply Current
150uA
Max Supply Voltage
4.3V
Min Supply Voltage
1.4V
Mount
Surface Mount
Number of Circuits
1
On-State Resistance
500mR
Operating Supply Current
150nA
Operating Supply Voltage
3V
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Type
Single
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
NXP NX3L1G66GM,132 Datasheet
Download the complete datasheet for NXP NX3L1G66GM,132 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

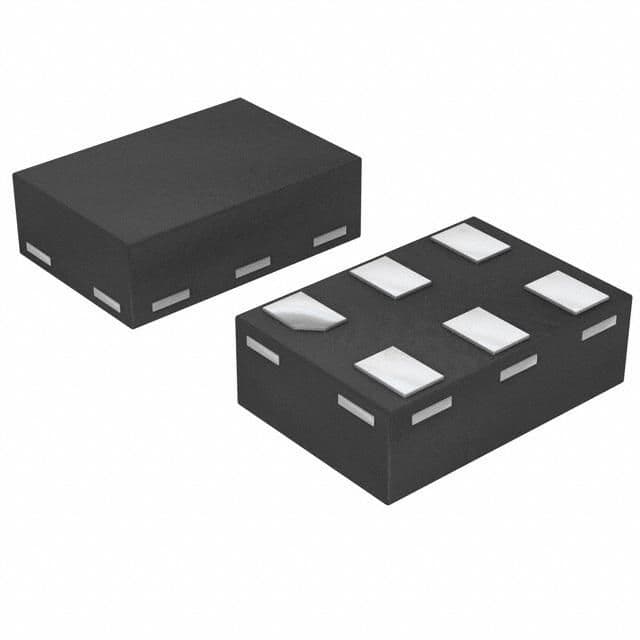

Product Images
