The NX3L2267GU,115 is a dual SPDT switch from NXP, operating between -40°C and 125°C. It has a maximum power dissipation of 250mW and is designed for surface mount applications. The device is RoHS compliant and has an on-state resistance of 750mR. It can handle a maximum supply voltage of 4.3V and a minimum supply voltage of 1.4V.
Current3uA
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
NXP NX3L2267GU,115 technical specifications.
General
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 250mW |
| Max Supply Voltage | 4.3V |
| Min Supply Voltage | 1.4V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 4 |
| On-State Resistance | 750mR |
| Operating Supply Current | 150nA |
| Operating Supply Voltage | 3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 3uA |
| Supply Type | Single |
| Throw Configuration | SPDT |
Compliance
| RoHS | Compliant |
Datasheet
NXP NX3L2267GU,115 Datasheet
Download the complete datasheet for NXP NX3L2267GU,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

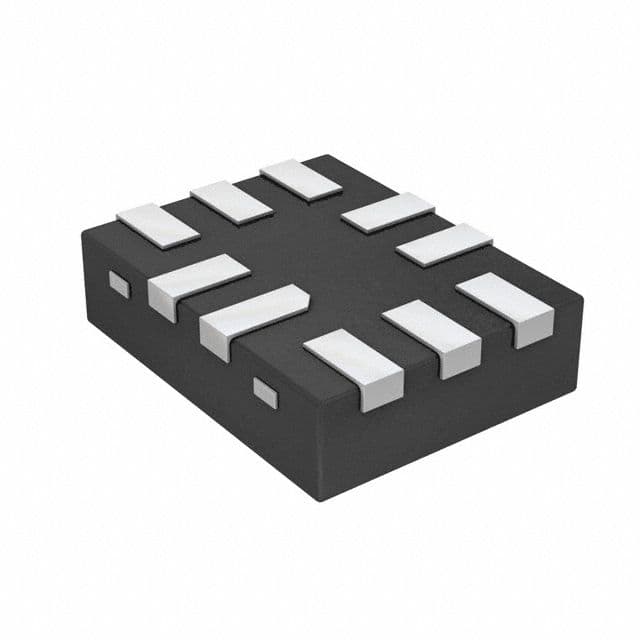

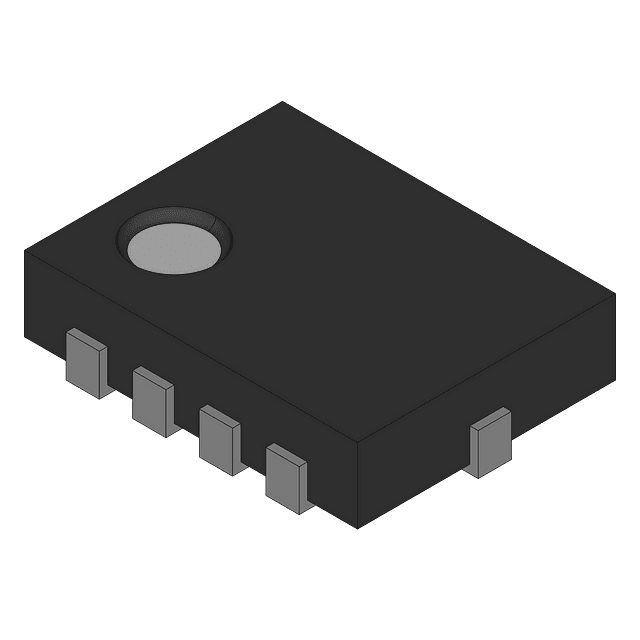

Product Images
