Technical Specifications
NXP NX3L2267SGU,115 technical specifications.
General
| -3db Bandwidth | 60MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 4.3V |
| Min Supply Voltage | 1.4V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 4 |
| On-State Resistance | 750mR |
| Operating Supply Current | 150nA |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Throw Configuration | SPDT |
Compliance
| RoHS | Compliant |
Datasheet
NXP NX3L2267SGU,115 Datasheet
Download the complete datasheet for NXP NX3L2267SGU,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

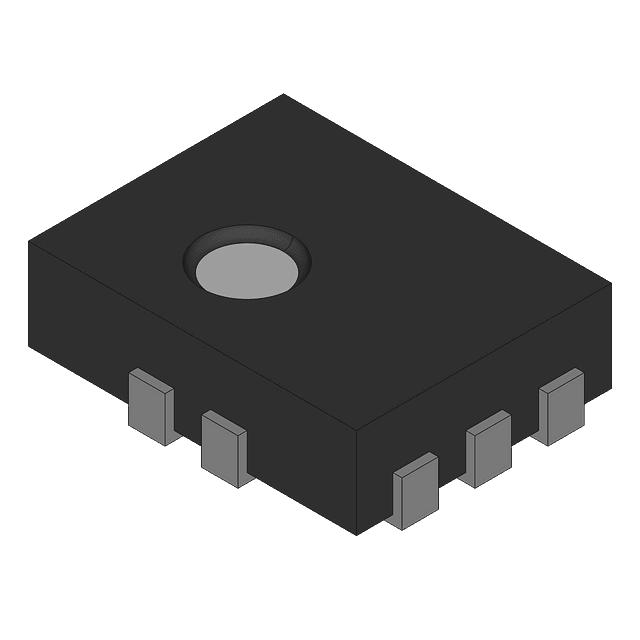

Product Images
