NXP
NX5P3001UKZ
NX5P3001 - Bidirectional high-side power switch for charger and USB‑OTG combined applications
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP NX5P3001UKZ technical specifications.
General
Fault Protection
Over Temperature, Reverse Current
Interface
On/Off, Serial
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Power Dissipation
1.44W
Mount
Surface Mount
Nominal Input Voltage
3.3V
Number of Outputs
1
Output Configuration
High Side
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
NX5
Compliance
RoHS
Compliant
Datasheet
NXP NX5P3001UKZ Datasheet
Download the complete datasheet for NXP NX5P3001UKZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

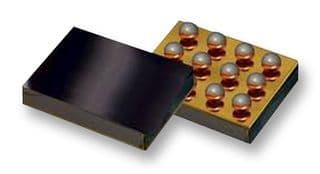

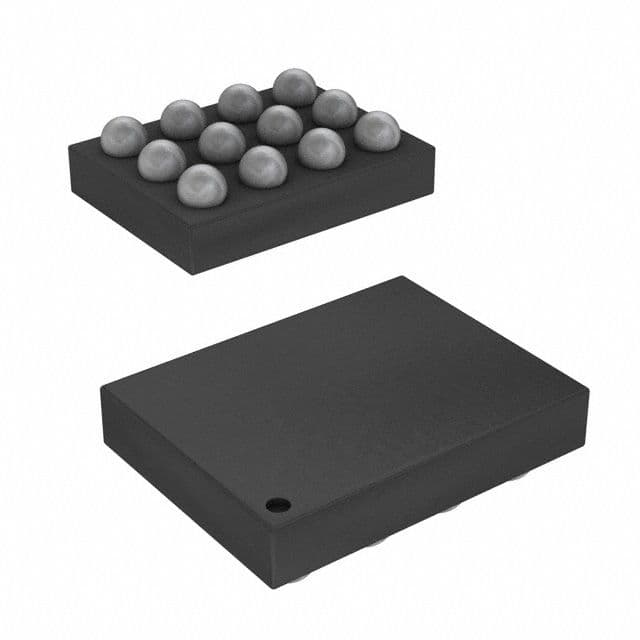

Product Images
