8-bit microcontroller featuring an 8051 core architecture and ROMless memory. This surface mount device operates at a maximum frequency of 16MHz, supports 3.3V/5V supply voltages, and offers 32 programmable I/O pins. Integrated peripherals include UART, USART, three timers/counters, three PWM channels, and a watchdog timer. Packaged in a 44-pin PLCC, this RoHS compliant component is suitable for a wide operating temperature range of 0°C to 70°C.
Frequency16MHz
PackageLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP P80C32SBAA,512 technical specifications.
General
| Package/Case | LCC |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 16MHz |
| Height | 4.06mm |
| Interface | UART, USART |
| Lead Free | Lead Free |
| Length | 16.66mm |
| Max Frequency | 16MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 1.5W |
| Max Supply Voltage | 5.5V |
| Memory Size | 32KB |
| Memory Type | ROMless, , ROM, EPROM |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of I/Os | 32 |
| Number of Programmable I/O | 32 |
| Number of PWM Channels | 3 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Package Quantity | 26 |
| Packaging | Rail/Tube |
| Peripherals | POR |
| Radiation Hardening | No |
| RAM Size | 256B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 80C |
| Watchdog Timer | Yes |
| Width | 16.66mm |
Compliance
| RoHS | Compliant |
Datasheet
NXP P80C32SBAA,512 Datasheet
Download the complete datasheet for NXP P80C32SBAA,512 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

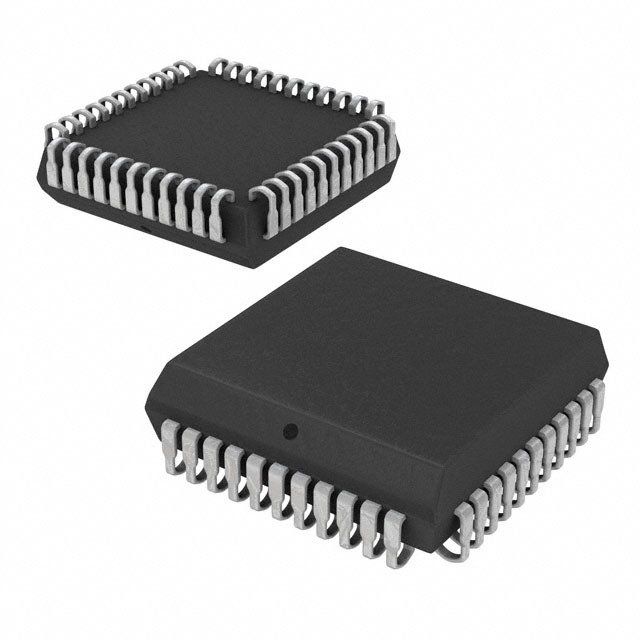

Product Images
