8-bit microcontroller featuring an 80C51 core architecture, operating up to 18MHz. This MCU offers 1KB of FLASH memory and 128B of RAM, with 10 programmable I/O pins. Integrated peripherals include UART, USART, 2 PWM channels, 2 timers/counters, Brown-out Detect/Reset, POR, and WDT. Packaged in a 14-TSSOP for surface mounting, it operates from 2.4V to 3.6V and is RoHS compliant.
Frequency18MHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP P89LPC9107FDH,129 technical specifications.
General
Package/Case
TSSOP
Core Architecture
80C51
Data Bus Width
8b
Frequency
18MHz
Interface
UART, USART
Lead Free
Lead Free
Max Frequency
12MHz
Max Operating Temperature
85°C
Max Power Dissipation
1.5W
Max Supply Voltage
3.6V
Memory Size
1KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.4V
Mount
Surface Mount
Number of I/Os
12
Number of Programmable I/O
10
Number of PWM Channels
2
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
960
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LPC900
Compliance
RoHS
Compliant
Datasheet
NXP P89LPC9107FDH,129 Datasheet
Download the complete datasheet for NXP P89LPC9107FDH,129 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

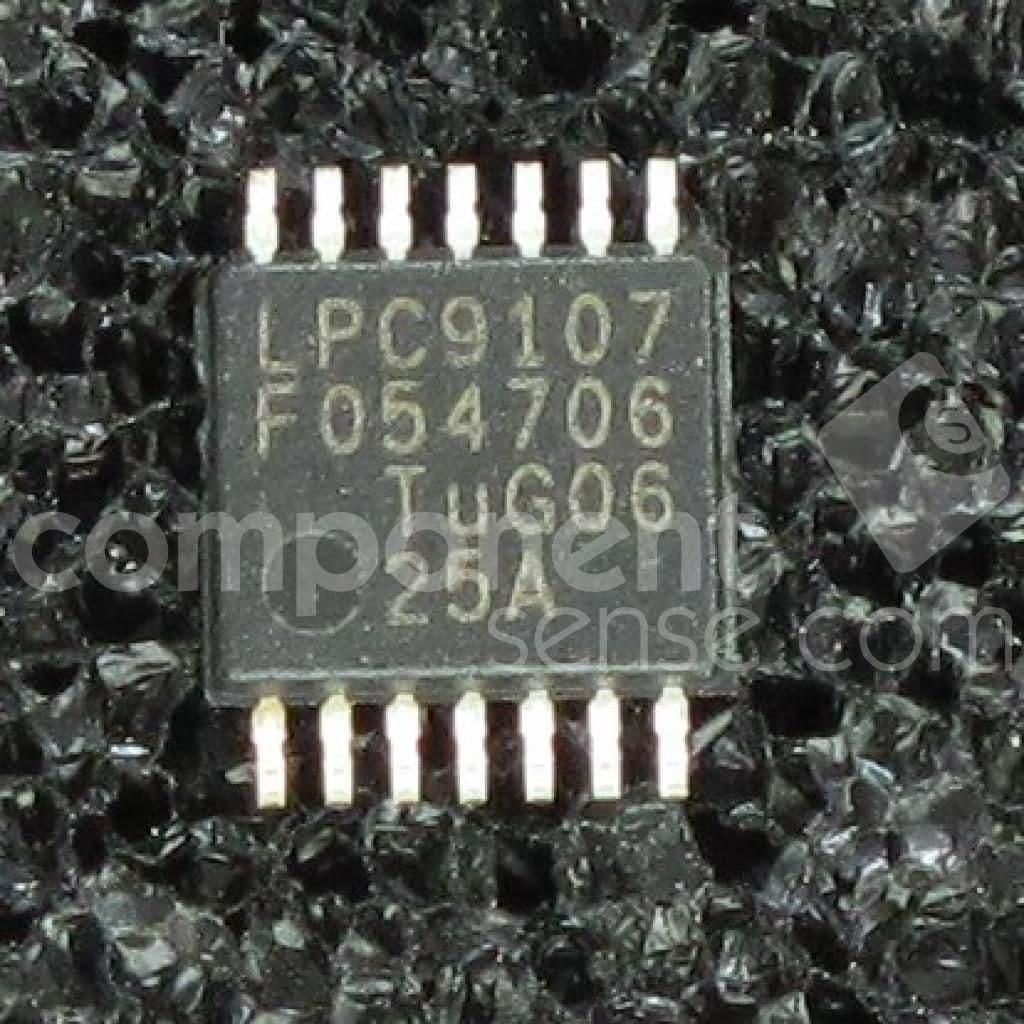

Product Images
