8-bit microcontroller featuring an accelerated two-clock 80C51 core. Offers 4KB of byte-erasable FLASH memory and 256 bytes of RAM. Operates at up to 18MHz with an internal oscillator, supporting I2C, UART, USART, and SPI interfaces. Includes 18 I/Os, 15 programmable, two timers/counters, and peripherals like Brown-out Detect, POR, PWM, and WDT. Packaged in a 20-pin TSSOP, this RoHS compliant component operates from 2.4V to 3.6V and across a temperature range of -40°C to 85°C.
Frequency18MHz
PackageTSSOP
Quick Jump:
Technical Specifications
NXP P89LPC9241FDH,112 technical specifications.
General
Package/Case
TSSOP
Core Architecture
80C51
Data Bus Width
8b
Frequency
18MHz
Interface
I2C, UART, USART, SPI
Lead Free
Lead Free
Max Frequency
18MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.5W
Max Supply Voltage
3.6V
Memory Size
4KB
Memory Type
FLASH,
Min Supply Voltage
2.4V
Number of I/Os
18
Number of Programmable I/O
15
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
75
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LPC900
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
NXP P89LPC9241FDH,112 Datasheet
Download the complete datasheet for NXP P89LPC9241FDH,112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

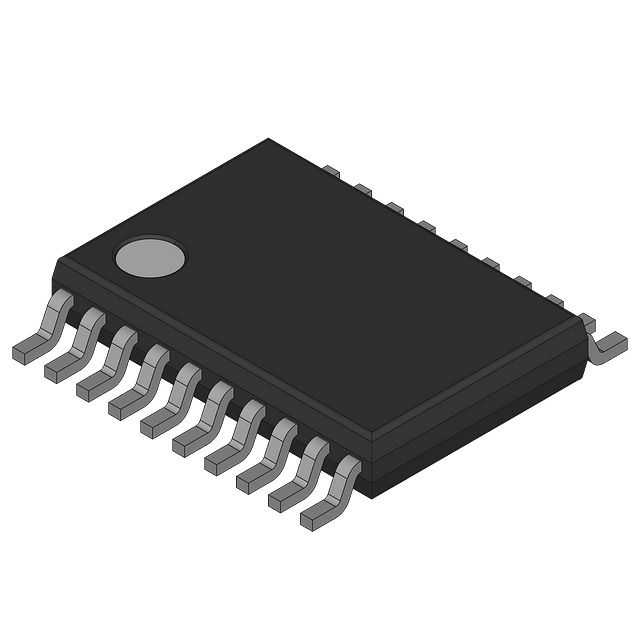

Product Images
