8-bit microcontroller featuring an 80C51 core architecture, operating at up to 18MHz. This MCU offers 8KB of FLASH memory and 768B of RAM, with 26 programmable I/Os. Integrated peripherals include I2C, SPI, UART, USART interfaces, along with Brown-out Detect/Reset, POR, PWM, and WDT. Designed for surface mounting in a VQFN package, it operates from 2.4V to 3.6V and is RoHS compliant.
Frequency18MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP P89LPC932A1FHN,151 technical specifications.
General
Package/Case
VQFN
Core Architecture
80C51
Data Bus Width
8b
Frequency
18MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
18MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.5W
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
2.4V
Mount
Surface Mount
Number of I/Os
26
Number of Programmable I/O
26
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
490
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
768B
RoHS Compliant
Yes
Series
LPC900
Compliance
RoHS
Compliant
Datasheet
NXP P89LPC932A1FHN,151 Datasheet
Download the complete datasheet for NXP P89LPC932A1FHN,151 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

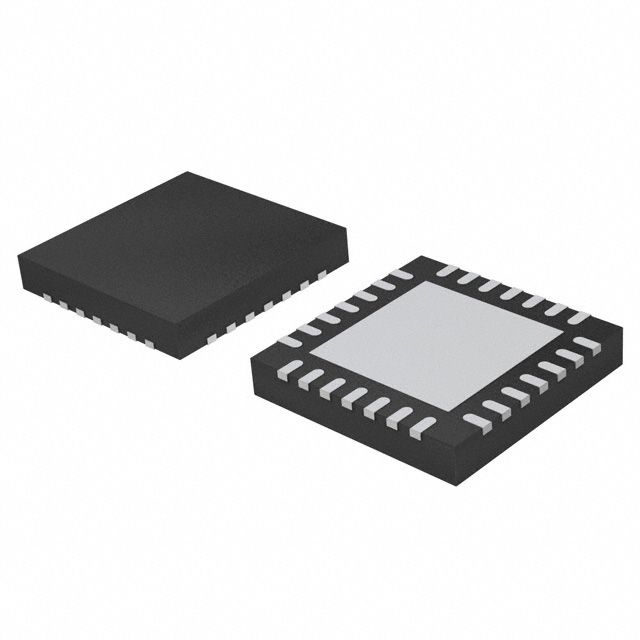

Product Images
