NXP
PBSS4240Y

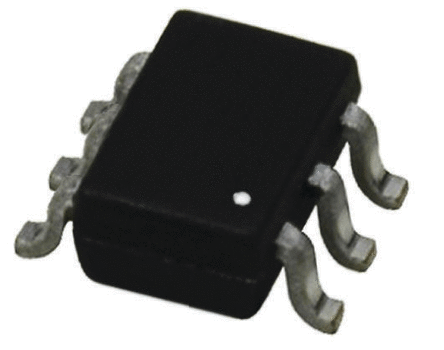

TRANSISTOR 2000 mA, 40 V, NPN, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, SC-88, 6 PIN, BIP General Purpose Small Signal
Frequency230MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP PBSS4240Y technical specifications.
General
Collector Base Voltage (VCBO)
40V
Collector Emitter Saturation Voltage
320mV
Emitter Base Voltage (VEBO)
5V
Height
1mm
Length
2.2mm
Max Collector Current
2A
Max Frequency
230MHz
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
430mW
Mount
Surface Mount
RoHS Compliant
Yes
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
NXP PBSS4240Y Datasheet
Download the complete datasheet for NXP PBSS4240Y to view detailed technical specifications.
