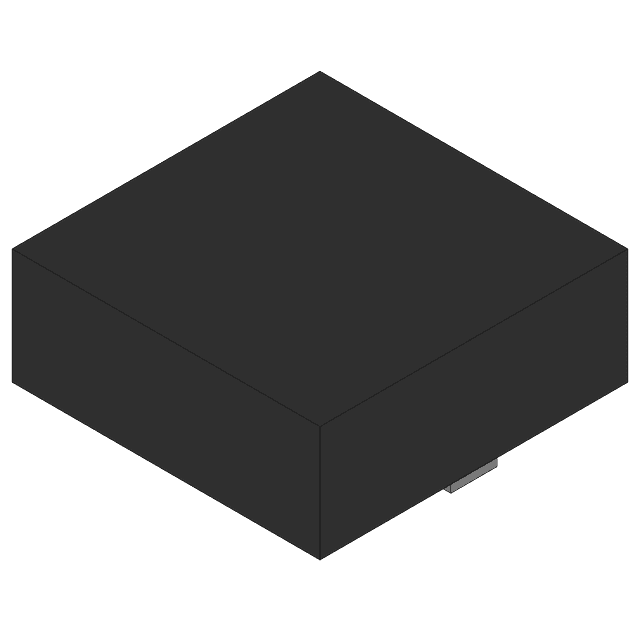

PackageSOT-1061
MountingSurface Mount
PolarityPNP
Quick Jump:
Technical Specifications
NXP PBSS5612PA,115 technical specifications.
General
Package/Case
SOT-1061
Collector Base Voltage (VCBO)
-12V
Collector Emitter Breakdown Voltage
12V
Collector-emitter Voltage-Max
300mV
Emitter Base Voltage (VEBO)
-7V
Gain Bandwidth Product
60MHz
hFE Min
130
Max Breakdown Voltage
12V
Max Collector Current
6A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
2.1W
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Polarity
PNP
Radiation Hardening
No
RoHS Compliant
Yes
Transition Frequency
60MHz
Compliance
RoHS
Compliant
Datasheet
NXP PBSS5612PA,115 Datasheet
Download the complete datasheet for NXP PBSS5612PA,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
