NXP
PCA9306DP1
IC SPECIALTY INTERFACE CIRCUIT, PDSO8, 0.5 X 3 MM, PLASTIC, SOT505-2, TSSOP-8, Interface IC:Other
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP PCA9306DP1 technical specifications.
General
Package/Case
TSSOP
Height
0.95mm
Length
3.1mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5V
Min Supply Voltage
0V
Mount
Surface Mount
Number of Circuits
1
Number of Inputs
2
Number of Outputs
2
Propagation Delay
3.3ns
RoHS Compliant
Yes
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
NXP PCA9306DP1 Datasheet
Download the complete datasheet for NXP PCA9306DP1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

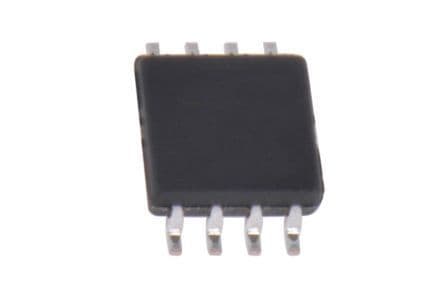

Product Images
