8-bit I/O expander with I2C interface, operating at up to 100kHz. Features 8 configurable I/O pins, 25mA output current, and a supply voltage range of 2.5V to 6V. Packaged in a 16-pin SO (SMD/SMT) for tape and reel deployment. This RoHS compliant component offers a wide operating temperature range from -40°C to 85°C.
Frequency100kHz
PackageSO
Current100mA
Quick Jump:
Technical Specifications
NXP PCF8574T/3,518 technical specifications.
General
Package/Case
SO
Frequency
100kHz
Height
2.65mm
Interface
I2C
Lead Free
Lead Free
Max Frequency
100kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
400mW
Max Supply Voltage
6V
Min Supply Voltage
2.5V
Number of Channels
8
Number of I/Os
8
Number of Ports
1
Output Current
25mA
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
100mA
Supply Voltage-Nom
6V
Termination
SMD/SMT
Weight
0.007079oz
Compliance
RoHS
Compliant
Datasheet
NXP PCF8574T/3,518 Datasheet
Download the complete datasheet for NXP PCF8574T/3,518 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

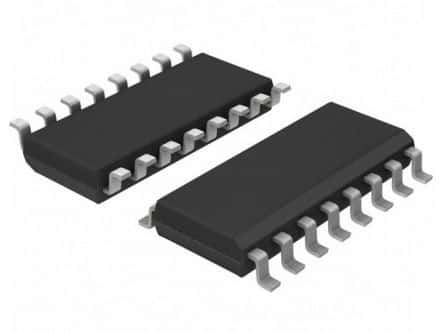

Product Images
