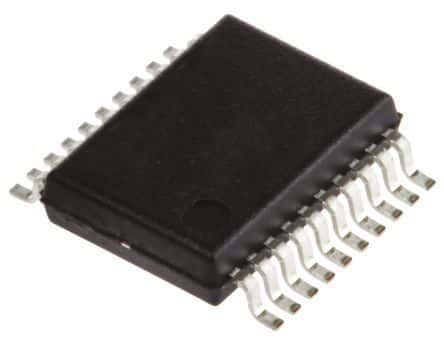

8-bit I/O expander with I2C interface, operating up to 100kHz and 6V supply voltage. Features 8 programmable I/O pins, 25mA output current, and 40µA supply current. Packaged in a 20-pin SSOP for tape and reel deployment. RoHS compliant and lead-free, with an operating temperature range of -40°C to 85°C.
Frequency100kHz
PackageSSOP
Current40uA
Quick Jump:
Technical Specifications
NXP PCF8574TS/3,118 technical specifications.
General
| Package/Case | SSOP |
| Frequency | 100kHz |
| Interface | I2C |
| Lead Free | Lead Free |
| Max Frequency | 100kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 400mW |
| Number of I/Os | 8 |
| Operating Supply Voltage | 6V |
| Output Current | 25mA |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 40uA |
| Supply Voltage-Nom | 6V |
| Weight | 0.016oz |
Compliance
| RoHS | Compliant |
Datasheet
NXP PCF8574TS/3,118 Datasheet
Download the complete datasheet for NXP PCF8574TS/3,118 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
