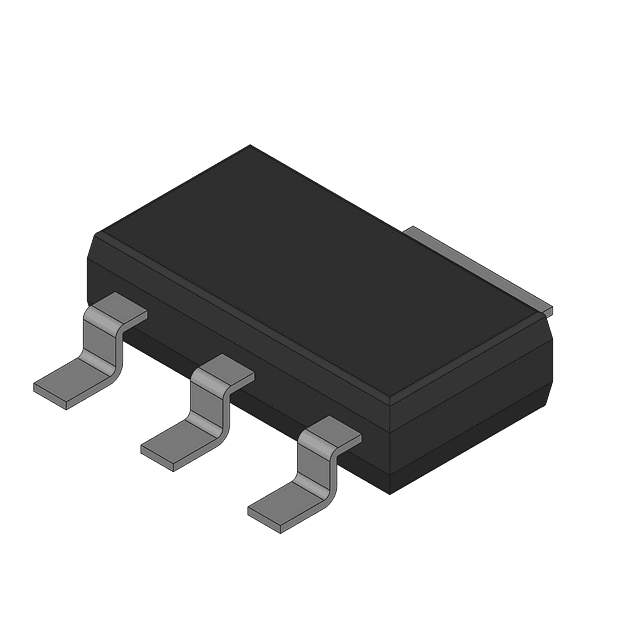

PVR100AZ-B5V0,115

Name: PVR100AZ-B5V0,115 NXP
Brand: NXP
SKU: PVR100AZ-B5V0,115

TRANS NPN 45V 0.1A SOT223

PackageTO-261-4

MountingSurface Mount

PolarityPositive, NPN

Quick Jump:

NXP PVR100AZ-B5V0,115 technical specifications.

Package/Case	TO-261-4
Collector Emitter Breakdown Voltage	45V
Lead Free	Lead Free
Max Breakdown Voltage	45V
Max Collector Current	100mA
Max Input Voltage	5.35V
Min Input Voltage	4.65V
Max Operating Temperature	150°C
Min Operating Temperature	-65°C
Max Power Dissipation	550mW
Mount	Surface Mount
Number of Outputs	1
Output Current	10mA
Output Voltage	5V
Package Quantity	1
Packaging	Tape and Reel
Polarity	Positive, NPN
RoHS Compliant	Yes

RoHS

Compliant
