NXP
SC16C654BIA68,518
SC16C654B/654DB - 5 V, 3.3 V and 2.5 V quad UART, 5 Mbit/s (max.), with 64-byte FIFOs and infrared (IrDA) encoder/decoder LCC 68-Pin
PackagePLCC
Current6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP SC16C654BIA68,518 technical specifications.
General
Package/Case
PLCC
Data Rate
5Mbps
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
4.5mA
Max Supply Voltage
5.5V
Min Supply Voltage
2.25V
Mount
Surface Mount
Number of Channels
4
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
6mA
Compliance
RoHS
Compliant
Datasheet
NXP SC16C654BIA68,518 Datasheet
Download the complete datasheet for NXP SC16C654BIA68,518 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

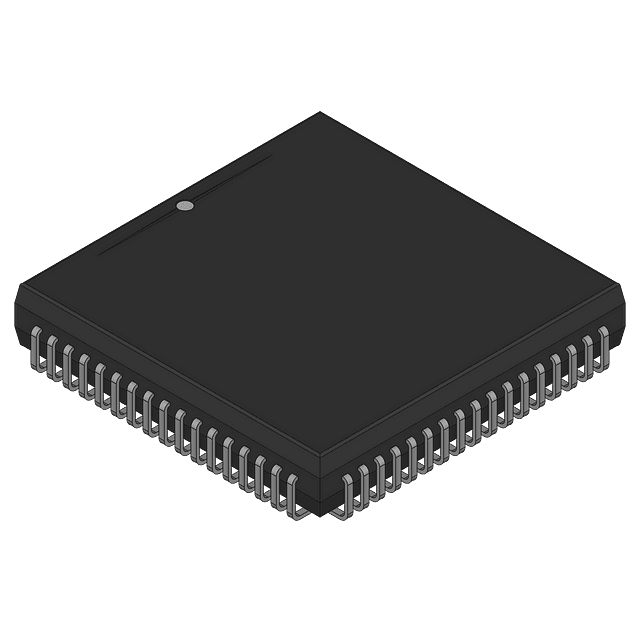

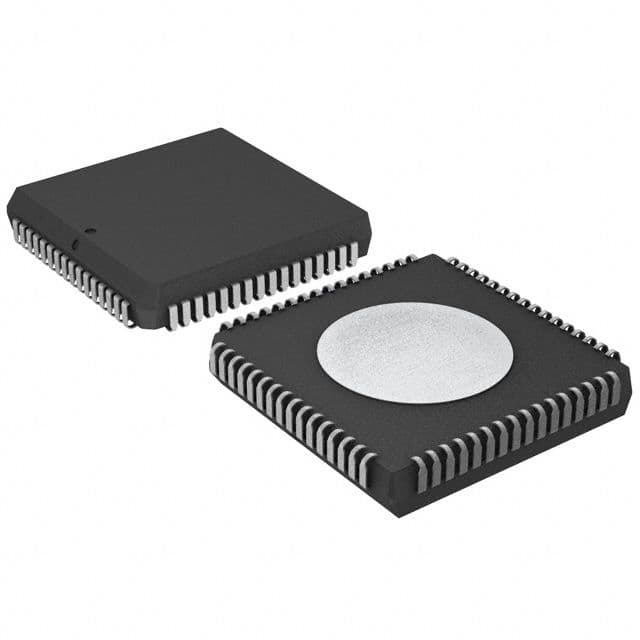

Product Images
