NXP
SC16C754BIA68,529
SC16C754B - 5 V, 3.3 V and 2.5 V quad UART, 5 Mbit/s (max.) with 64-byte FIFOs LCC 68-Pin
PackagePLCC
Current4.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP SC16C754BIA68,529 technical specifications.
General
Package/Case
PLCC
Data Rate
5Mbps
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
4.5mA
Max Supply Voltage
5.5V
Min Supply Voltage
2.25V
Mount
Surface Mount
Number of Channels
4
Operating Supply Voltage
5V
Package Quantity
18
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
4.5mA
Compliance
RoHS
Compliant
Datasheet
NXP SC16C754BIA68,529 Datasheet
Download the complete datasheet for NXP SC16C754BIA68,529 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

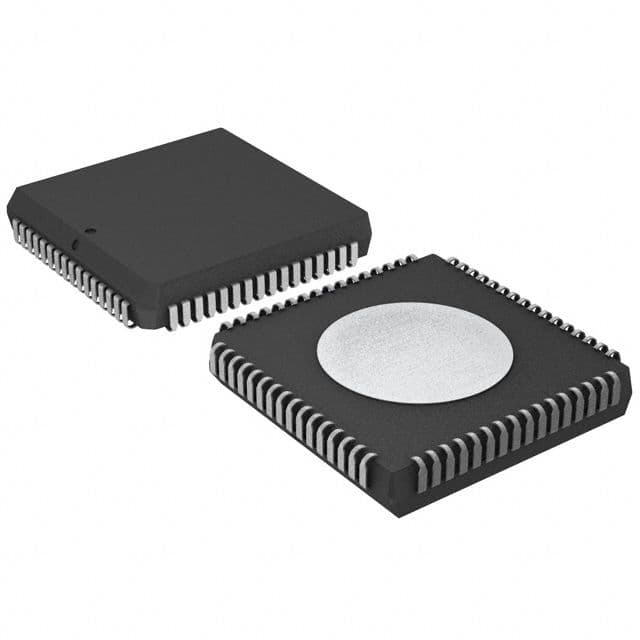

Product Images
