Automotive CAN controller IC supporting 5Mbps data rates. Features parallel and serial interfaces, operating from a 4.5V to 5.5V supply with a 5V nominal voltage. Includes one transmit and one receive buffer, with a low quiescent current of 40µA. Packaged in a 28-pin SO surface-mount case, this RoHS-compliant component operates between -40°C and 125°C.
PackageSO
Current15mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP SJA1000T/N1,118 technical specifications.
General
| Package/Case | SO |
| Data Rate | 1000Kbps |
| Interface | Parallel, CAN, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 15mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Functions | 1 |
| Number of Receive Buffers | 1 |
| Number of Transceivers | 1 |
| Number of Transmit Buffers | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Quiescent Current | 40uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 15mA |
| Supply Voltage-Nom | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
NXP SJA1000T/N1,118 Datasheet
Download the complete datasheet for NXP SJA1000T/N1,118 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

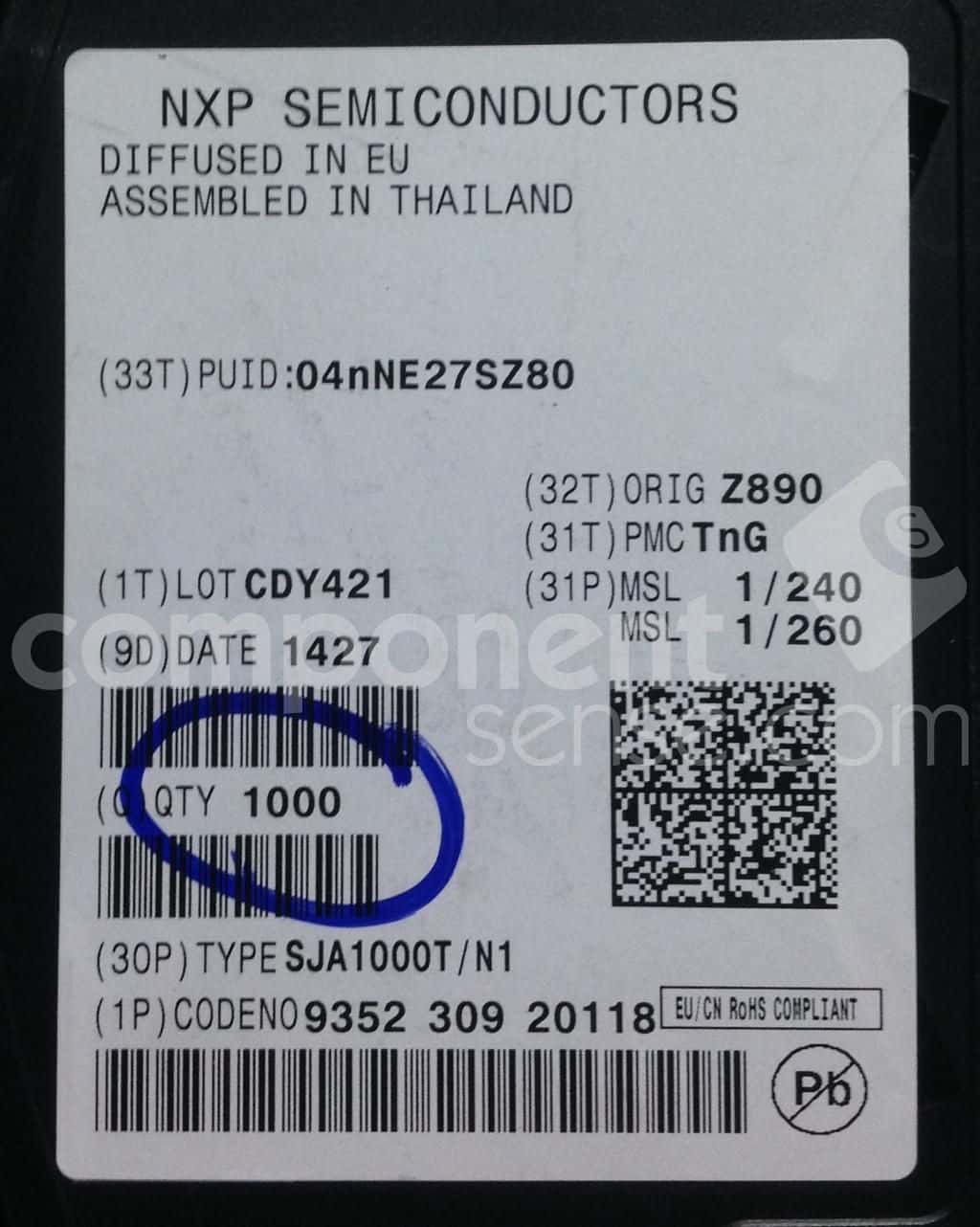

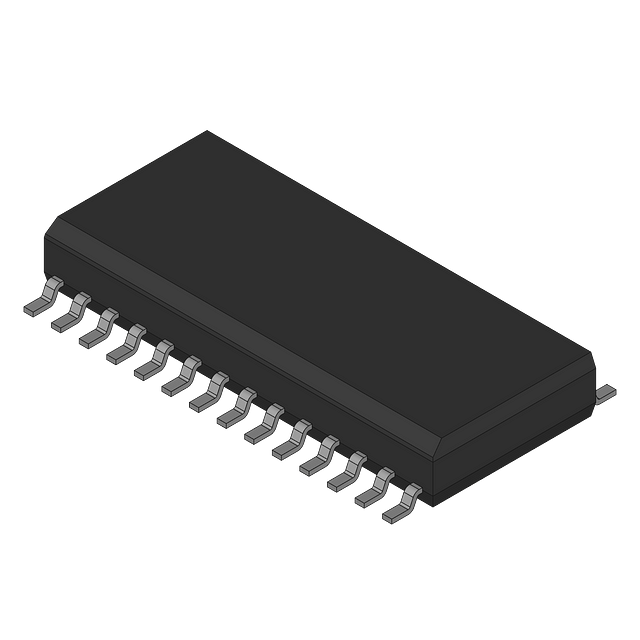

Product Images
