32-bit microcontroller (MCU) with 1MB FLASH memory and 64KB RAM. Features a 40MHz core frequency, expandable to 80MHz, and supports SPI, CAN, UART, USART, LIN, SCI, and EBI/EMI interfaces. Operates from -40°C to 150°C with a 5.25V supply voltage. Includes 114 I/Os, 80 programmable I/Os, 4 timers/counters, and integrated peripherals like POR, PWM, WDT, and DMA. Packaged in a 144-pin LQFP for surface mounting.
Frequency40MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP SPC5633MF1MLQ40 technical specifications.
General
| Package/Case | LQFP |
| Data Bus Width | 32b |
| Frequency | 40MHz |
| Halogen Free | Halogen Free |
| Interface | SPI, CAN, UART, USART, LIN, SCI, EBI/EMI |
| Max Frequency | 80MHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1.5W |
| Memory Size | 1MB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of I/Os | 114 |
| Number of Programmable I/O | 80 |
| Number of Timers/Counters | 4 |
| Operating Supply Voltage | 5.25V |
| Oscillator Type | Internal |
| Package Quantity | 60 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 64KB |
| RoHS Compliant | Yes |
| Series | MPC56xx Qorivva |
| Watchdog Timer | Yes |
| Weight | 0.04653oz |
Compliance
| RoHS | Compliant |
Datasheet
NXP SPC5633MF1MLQ40 Datasheet
Download the complete datasheet for NXP SPC5633MF1MLQ40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

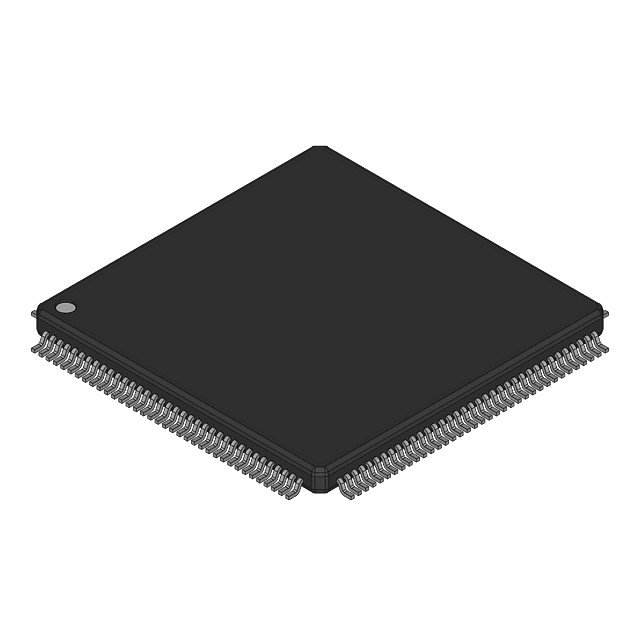

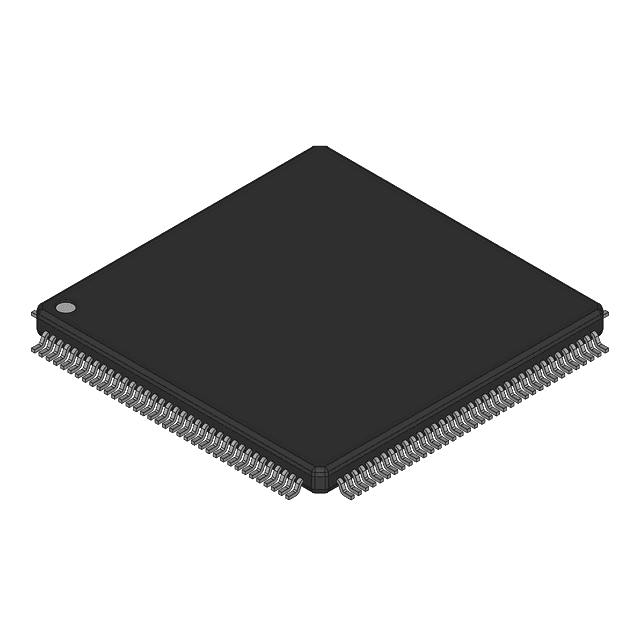

Product Images
