CMOS buffer IC featuring 28 bits and 56 non-inverting outputs. Operates with a 1.8V supply voltage, supporting a range of 1.7V to 2V. Achieves a maximum frequency of 450MHz with a propagation delay of 3ns. Packaged in a 176-pin TFBGA for surface mounting.
Frequency450MHz
PackageTFBGA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
NXP SSTUM32868ET,518 technical specifications.
General
| Package/Case | TFBGA |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 450MHz |
| High Level Output Current | -8mA |
| Lead Free | Lead Free |
| Logic Function | Buffer |
| Low Level Output Current | 8mA |
| Max Frequency | 450MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 2V |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Number of Bits | 28 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Inputs | 28 |
| Number of Outputs | 56 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 3ns |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Technology | CMOS |
| Turn-On Delay Time | 3ns |
Compliance
| RoHS | Not CompliantNo |
Datasheet
NXP SSTUM32868ET,518 Datasheet
Download the complete datasheet for NXP SSTUM32868ET,518 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

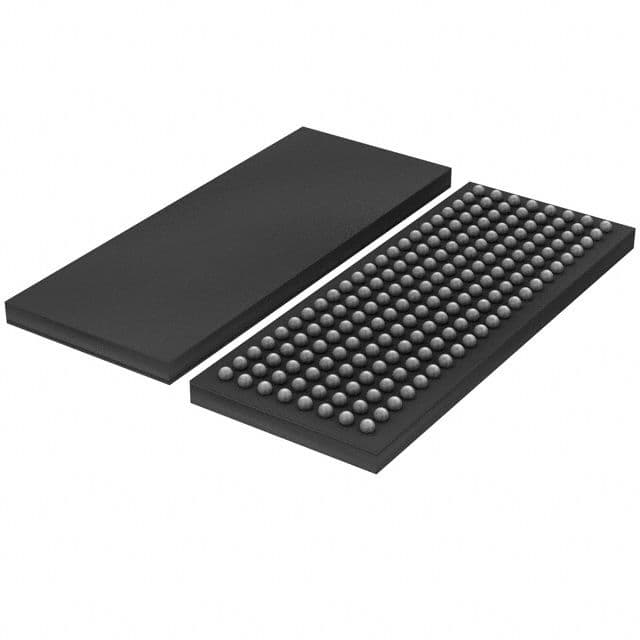

Product Images
