The TJA1145T/FDJ is a 1Mbps SOIC surface mount full duplex transceiver with a maximum operating temperature of 150°C and a minimum operating temperature of -40°C. It is RoHS compliant and lead free. The device is packaged in a tape and reel format and is suitable for use in network interface applications.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP TJA1145T/FDJ technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 1Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Transceivers | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Receiver Hysteresis | 200mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
Compliance
| RoHS | Compliant |
Datasheet
NXP TJA1145T/FDJ Datasheet
Download the complete datasheet for NXP TJA1145T/FDJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

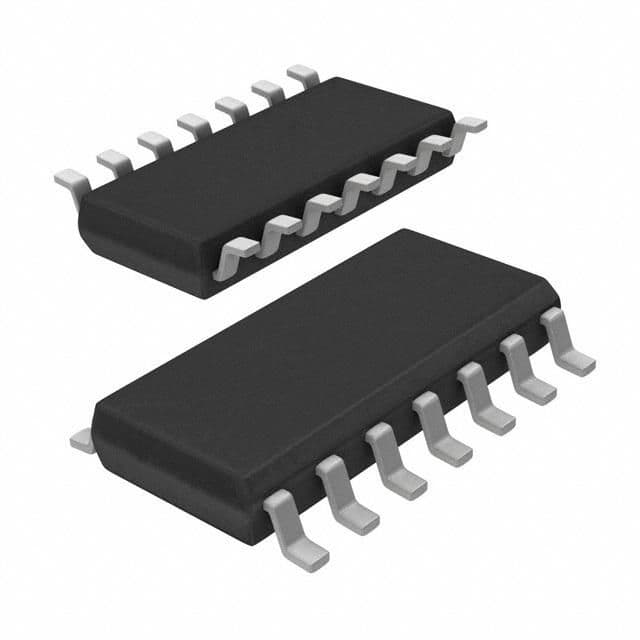

Product Images
