Technical Specifications
NXP TL431ASDT215 technical specifications.
General
Accuracy
1%
Package/Case
TO-236AB
Cathode Current
600uA
Lead Free
Lead Free
Max Input Voltage
2.52V
Min Input Voltage
2.47V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
36V
Max Supply Current
10mA
Mount
Surface Mount
Number of Channels
1
Output Current
100mA
Output Voltage
36V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reference Type
Shunt, Adjustable
Reference Voltage
36V
Tolerance
1%
Compliance
RoHS
Compliant
Datasheet
NXP TL431ASDT215 Datasheet
Download the complete datasheet for NXP TL431ASDT215 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

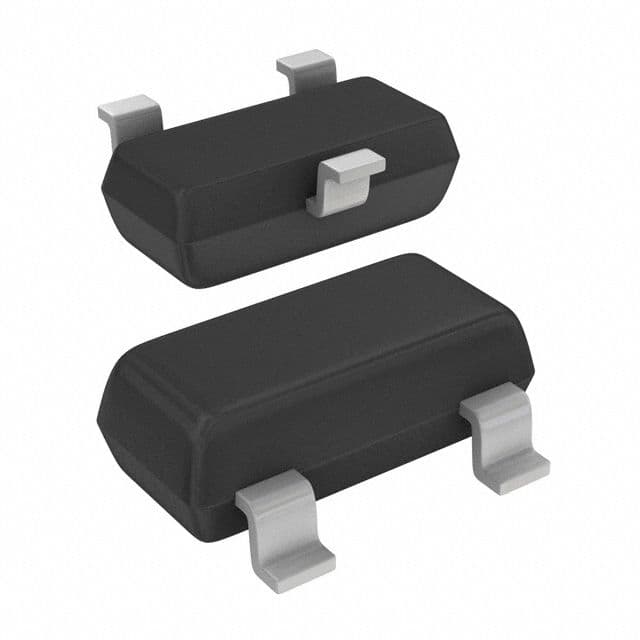

Product Images
