The UJA1164TK,118 is a single transceiver IC from NXP, designed for surface mount applications. It operates within a temperature range of -40°C to 150°C and can handle supply voltages between 3V and 28V. The device has a supply current of 67mA. It is RoHS compliant and packaged in a SON package, suitable for tape and reel packaging.
Current67mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP UJA1164TK,118 technical specifications.
General
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 28V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Transceivers | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Supply Current | 67mA |
Compliance
| RoHS | Compliant |
Datasheet
NXP UJA1164TK,118 Datasheet
Download the complete datasheet for NXP UJA1164TK,118 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

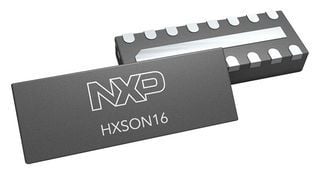

Product Images
