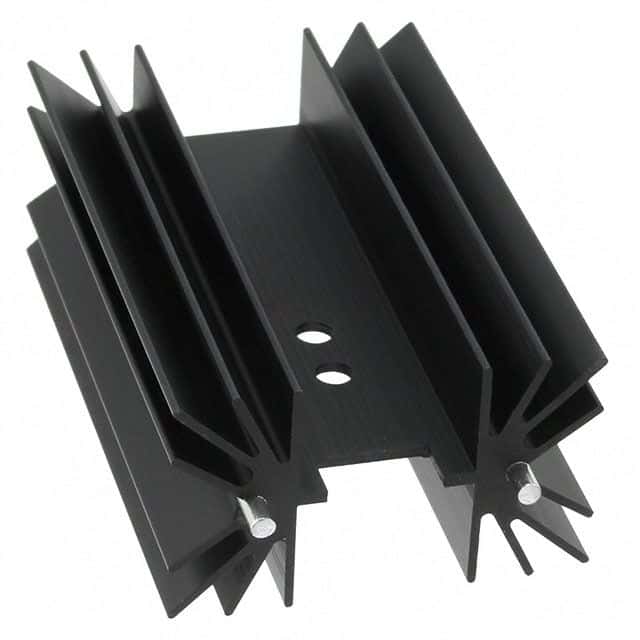

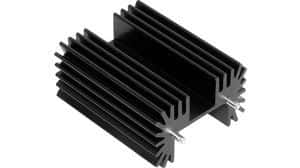

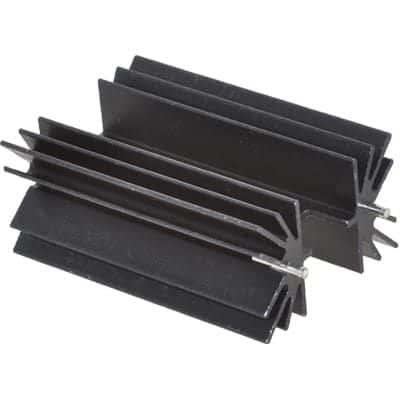

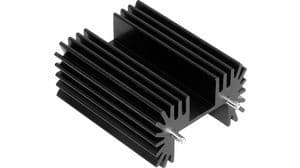

The FA-T220-64E is a TO-220 heat sink from Ohmite, featuring a black anodized finish and a rectangular shape with fins. It measures 63.5mm in height, 41.6mm in length, and 25mm in width, with a weight of 46g. This heat sink is designed for screw mount applications and has a natural thermal resistance of 3°C/W, reducing to 2°C/W when subjected to forced air flow at 100 LFM. The FA-T220-64E is RoHS compliant and available in bulk packaging with 7 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ohmite FA-T220-64E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220 |
| Color | Black |
| Finish | Anodized |
| Height | 63.5mm |
| Length | 41.6mm |
| Material | Aluminium |
| Mount | Bolt, PC Pin, Vertical, Screw |
| Natural Thermal Resistance | 3°C/W |
| Package Quantity | 7 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | F |
| Shape | Fins, Rectangular |
| Thermal Resistance @ Forced Air Flow (100 LFM) | 2°C/W |
| Type | Passive |
| Weight | 46g |
| Width | 25mm |
| RoHS | Compliant |
