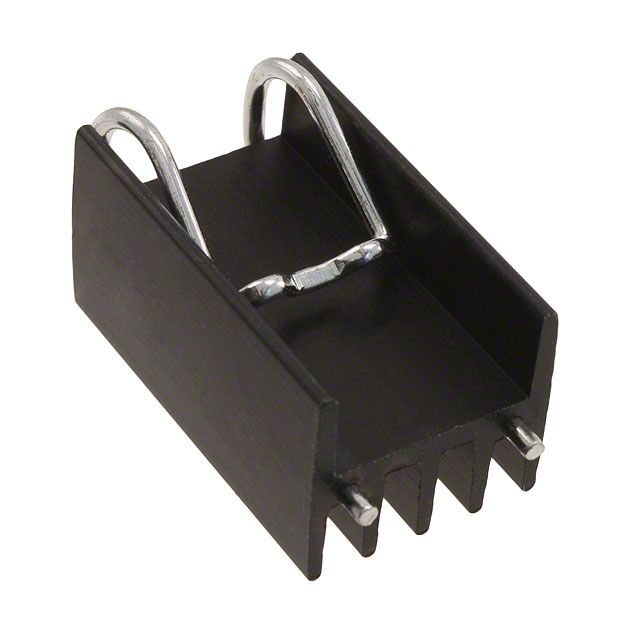

Passive TO-220 heat sink featuring a black anodized aluminum construction for efficient thermal dissipation. Designed with rectangular fins, this component offers a natural thermal resistance of 12°C/W and mounts via clip, PC pin, or solder. Dimensions include a 30.5mm height, 18.3mm length, and 16mm width, with a weight of 0.35oz. RoHS compliant and packaged in bulk.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ohmite WA-T220-101E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220 |
| Color | Black |
| Finish | Anodized |
| Height | 30.5mm |
| Length | 18.3mm |
| Material | Aluminium |
| Mount | Clip, PC Pin, Solder |
| Natural Thermal Resistance | 12°C/W |
| Package Cooled | TO-220 |
| Package Quantity | 30 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | W |
| Shape | Fins, Rectangular |
| Type | Passive |
| Weight | 0.35oz |
| Width | 16mm |
| RoHS | Compliant |
Download the complete datasheet for Ohmite WA-T220-101E to view detailed technical specifications.
