DPDT Keylock Switch, 2-position maintained, 5A at 125VAC and 30VDC. Features copper/silver contacts, 90° index angle, and solder termination. Rated for 5A, with electrical life of 100,000 cycles and mechanical life of 250,000 cycles. Panel mount design with vertical orientation, operating temperature range of -10°C to 55°C. IP65 rated, lead-free, and RoHS compliant, with UL and CSA approvals.
Current Rating5A
MountingPanel
Quick Jump:
Technical Specifications
Omron A165K-A2M-2 technical specifications.
General
Approvals
UL, CSA
Body Material
Plastic
Contact Current Rating
5A
Contact Material
Copper, Silver
Current Rating
5A
Electrical Life
100000Cycles
Index Angle
90°
Lead Free
Lead Free
Max Operating Temperature
55°C
Mechanical Life
250000Cycles
Min Operating Temperature
-10°C
Mount
Panel
Number of Poles
2
Number of Positions
2
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
Ratings
IP65
RoHS Compliant
Yes
Series
A165K
Switch Function
On-On
Termination
Solder
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron A165K-A2M-2 Datasheet
Download the complete datasheet for Omron A165K-A2M-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

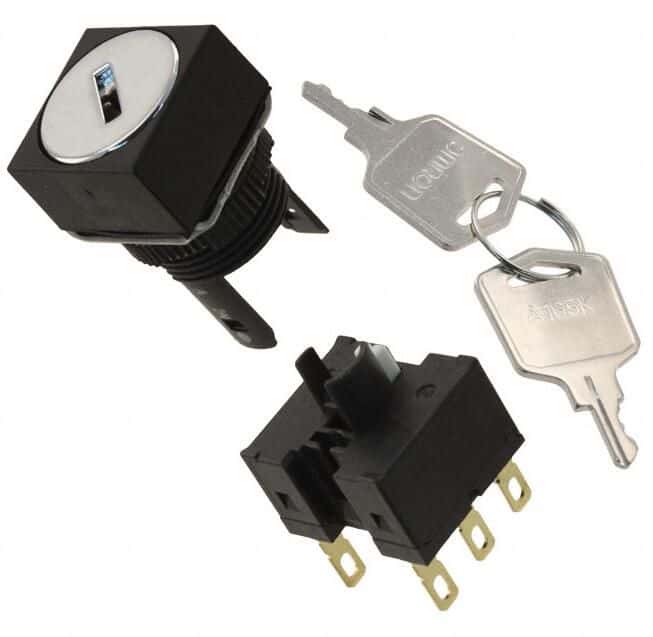

Product Images
