Omron
A3AT-91K1-00EY
Switch Push Button N.O. SPST Round Button 4A 250VAC 30VDC Momentary Contact PC Pins Panel Mount/Through Hole
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron A3AT-91K1-00EY technical specifications.
General
| Actuator Type | Round, Button |
| Current Rating | 4A |
| Electrical Life | 50000Cycles |
| Illumination Type | LED |
| Max Operating Temperature | 55°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP00 |
| RoHS Compliant | Yes |
| Series | A3A |
| Switch Function | Off-Mom |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron A3AT-91K1-00EY Datasheet
Download the complete datasheet for Omron A3AT-91K1-00EY to view detailed technical specifications.
No datasheet is available for this part.

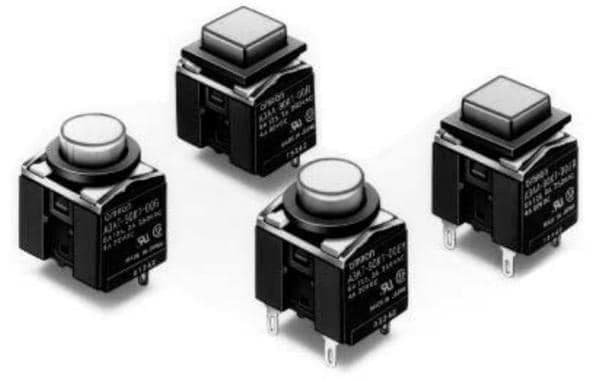

Product Images
