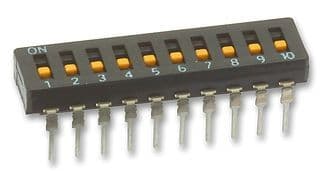

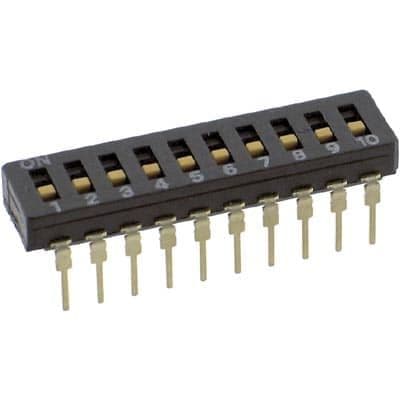

10-circuit SPST DIP switch with slide actuator, featuring gold-plated copper contacts and a 100mA contact current rating. This through-hole mount component operates within a -20°C to 70°C temperature range and supports up to 30VDC. It offers a 2,000-cycle electrical life and 5,000-cycle mechanical life, with a 2.54mm terminal pitch. The sealed DIP package is washable and RoHS compliant.
PackageDIP
Current Rating100mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Omron A6D-0100 technical specifications.
General
Actuator Length
0mm
Actuator Type
Slide (Standard)
Package/Case
DIP
Contact Current Rating
100mA
Contact Material
Copper, Gold
Contact Plating
Gold
Current Rating
100mA
Electrical Life
2000Cycles
Height
3.4mm
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
30V
Mechanical Life
5000Cycles
Mount
Through Hole, PCB
Number of Circuits
10
Number of Poles
10
Number of Positions
10
Orientation
Straight
Package Quantity
19
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
A6D
Terminal Pitch
2.54mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
30V
Washable
Yes
Weight
1g
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Omron A6D-0100 Datasheet
Download the complete datasheet for Omron A6D-0100 to view detailed technical specifications.
