SPST DIP switch featuring a PIANO actuator with a 1.75mm length. This through-hole mount component offers 2 circuits and 2 poles, with 2 positions and a straight orientation. It boasts a contact current rating of 100mA at 30V DC, gold-plated copper contacts, and a terminal pitch of 2.54mm. Designed for PCB mounting, it provides 2000 electrical cycles and 5000 mechanical cycles, is washable, and RoHS compliant.
PackageDIP
Current Rating100mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Omron A6DR-2100 technical specifications.
General
Actuator Length
1.75mm
Actuator Type
PIANO
Package/Case
DIP
Contact Current Rating
100mA
Contact Material
Copper, Gold
Contact Plating
Gold
Current Rating
100mA
Depth
10.75mm
Electrical Life
2000Cycles
Lead Free
Lead Free
Length
7.1mm
Life (Hours)
2000Hour
Max Current Rating
100mA
Max Operating Temperature
70°C
Max Voltage Rating (DC)
30V
Mechanical Life
5000Cycles
Min Operating Temperature
-20°C
Mount
Through Hole, PCB
Number of Circuits
2
Number of Poles
2
Number of Positions
2
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
A6DR
Terminal Pitch
2.54mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
30V
Washable
Yes
Weight
0.009877oz
Compliance
RoHS
Compliant
Datasheet
Omron A6DR-2100 Datasheet
Download the complete datasheet for Omron A6DR-2100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

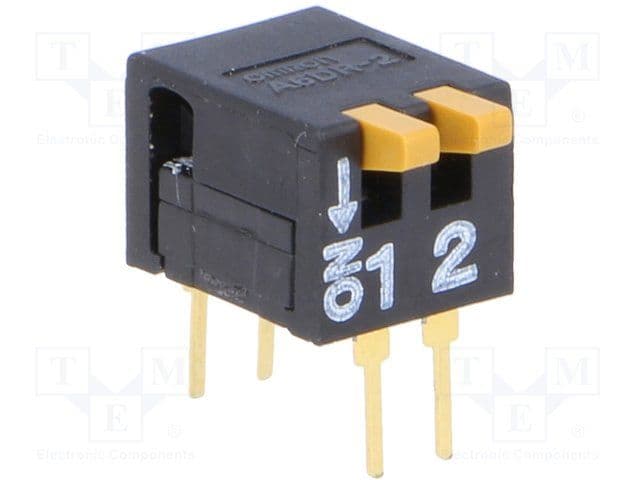

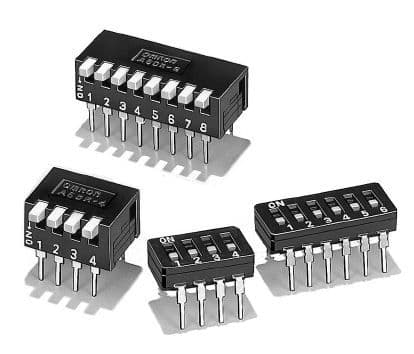

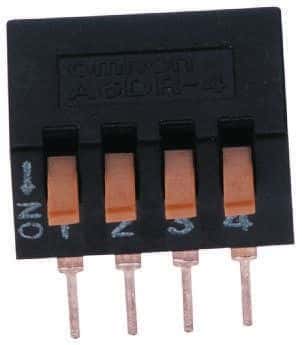

Product Images
