8-position, SPST DIP switch with a straight, piano actuator. Features gold-plated copper contacts, a 100mA current rating, and a 30VDC voltage rating. Through-hole mounting with a 2.54mm terminal pitch, this sealed switch offers 2000 electrical cycles and 5000 mechanical cycles. RoHS compliant and washable, operating between -20°C and 70°C.
PackageDIP
Current Rating100mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Omron A6DR-8100 technical specifications.
General
Actuator Type
PIANO
Package/Case
DIP
Contact Current Rating
100mA
Contact Material
Copper, Gold
Contact Plating
Gold
Current Rating
100mA
Depth
10.75mm
Electrical Life
2000Cycles
Lead Free
Lead Free
Length
22.4mm
Max Current Rating
100mA
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
30V
Mechanical Life
5000Cycles
Mount
Through Hole, PCB
Number of Circuits
8
Number of Poles
8
Number of Positions
8
Number of Switches
8
Orientation
Straight
Packaging
Box
Pitch
0.1inch
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
A6DR
Terminal Pitch
2.54mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
30V
Washable
Yes
Weight
0.059966oz
Compliance
RoHS
Compliant
Datasheet
Omron A6DR-8100 Datasheet
Download the complete datasheet for Omron A6DR-8100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

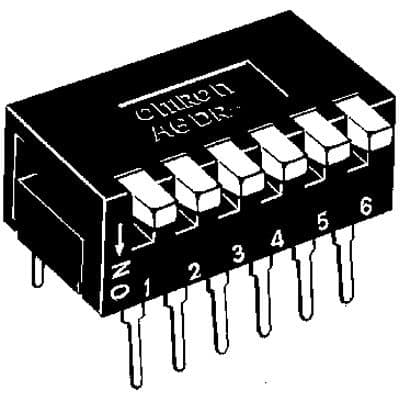

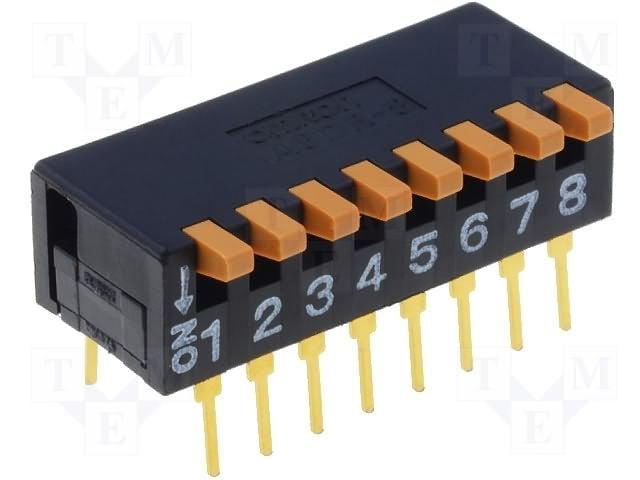

Product Images
