4-position SPST DIP switch with a standard slide actuator. Features gold-plated contacts rated for 25mA at 24VDC, offering 1000 cycles of electrical and mechanical life. Through-hole mounting with PC pin termination and a 2.54mm terminal pitch. Operates within a temperature range of -20°C to 70°C. RoHS compliant and lead-free.
Current Rating25mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron A6E-4104 technical specifications.
General
| Actuator Length | 1.8mm |
| Actuator Type | Slide (Standard) |
| Contact Current Rating | 25mA |
| Contact Plating | Gold |
| Current Rating | 25mA |
| Depth | 9.9mm |
| Electrical Life | 1000Cycles |
| Lead Free | Lead Free |
| Length | 11.72mm |
| Life (Hours) | 1000Hour |
| Max Current Rating | 25mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 1000Cycles |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Positions | 4 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | A6E |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | No |
| Weight | 1g |
Compliance
| RoHS | Compliant |
Datasheet
Omron A6E-4104 Datasheet
Download the complete datasheet for Omron A6E-4104 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

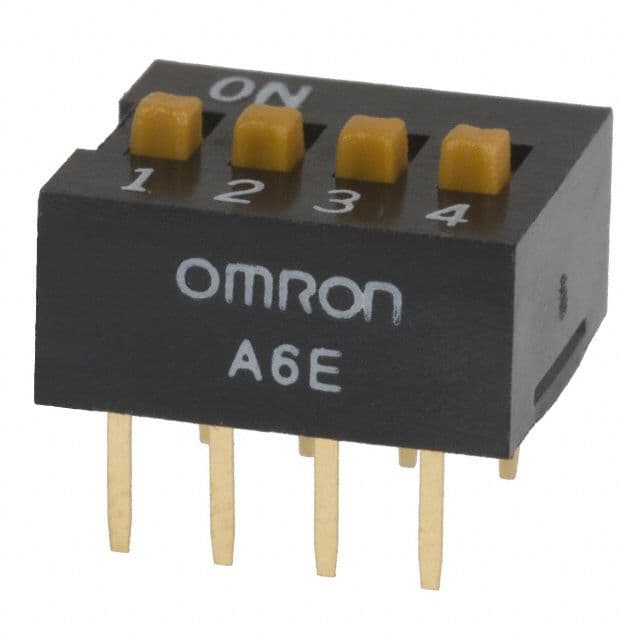

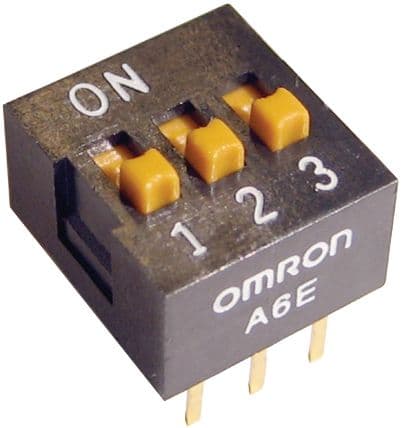

Product Images
