6-position SPST DIP switch with a straight, raised slide actuator. Features gold-plated contacts rated for 25mA at 24VDC, offering 1000 electrical and mechanical cycles. Terminates via PC pins with a 2.54mm pitch for through-hole mounting. Operating temperature range is -20°C to 70°C.
Current Rating25mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron A6E-6104 technical specifications.
General
Actuator Length
1mm
Actuator Type
Slide (Standard)
Contact Current Rating
25mA
Contact Plating
Gold
Current Rating
25mA
Electrical Life
1000Cycles
Height
7.1mm
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
1000Cycles
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mount
Through Hole
Number of Circuits
6
Number of Positions
6
Orientation
Straight
Package Quantity
28
Packaging
Rail/Tube
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
A6E
Terminal Pitch
2.54mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Weight
1.32g
Width
9.9mm
Compliance
RoHS
Compliant
Datasheet
Omron A6E-6104 Datasheet
Download the complete datasheet for Omron A6E-6104 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

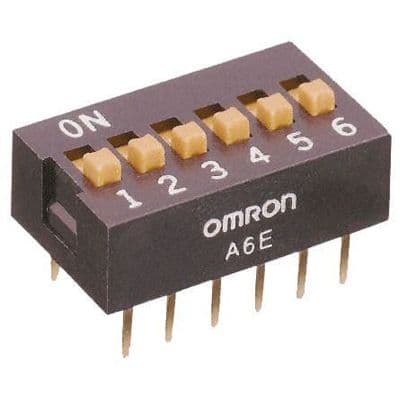

Product Images
