SPST DIP switch featuring a straight, slide actuator with a 1mm length. This through-hole mounted component offers 9 circuits and 9 positions, with a contact current rating of 25mA at 24VDC. It boasts gold contact plating, a terminal pitch of 2.54mm, and an electrical and mechanical life of 1000 cycles. Operating temperature range is -20°C to 70°C.
Current Rating25mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron A6E9104 technical specifications.
General
Actuator Length
1mm
Actuator Type
Slide (Standard)
Contact Current Rating
25mA
Contact Plating
Gold
Current Rating
25mA
Electrical Life
1000Cycles
Lead Free
Lead Free
Length
0.961inch
Max Operating Temperature
70°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000Cycles
Min Operating Temperature
-20°C
Mount
Through Hole
Number of Circuits
9
Number of Positions
9
Orientation
Straight
Package Quantity
19
Packaging
Rail/Tube
Pitch
0.1inch
Reach SVHC Compliant
Unknown
Series
A6E
Terminal Pitch
2.54mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Compliance
RoHS
Compliant
Datasheet
Omron A6E9104 Datasheet
Download the complete datasheet for Omron A6E9104 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

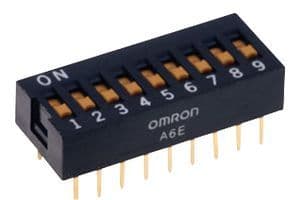

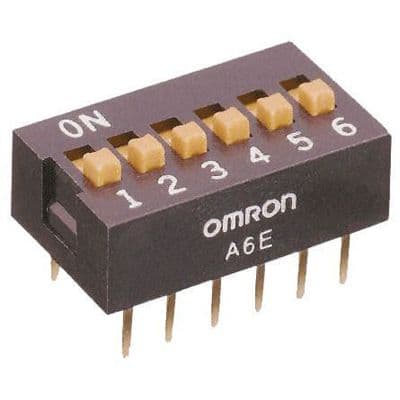

Product Images
