Omron
A6H-0101-P
Switch DIP OFF ON SPST 10 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD T/R
Current Rating25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron A6H-0101-P technical specifications.
General
Actuator Type
Slide (Standard)
Current Rating
25mA
Electrical Life
1000Cycles
Length
0.548inch
Max Operating Temperature
70°C
Mechanical Life
1000Cycles
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mount
Surface Mount
Number of Positions
10
Package Quantity
33
Packaging
Tape and Reel
Pitch
0.05inch
Radiation Hardening
No
RoHS Compliant
Yes
Series
A6H
Terminal Pitch
1.27mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Compliance
RoHS
Compliant
Datasheet
Omron A6H-0101-P Datasheet
Download the complete datasheet for Omron A6H-0101-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

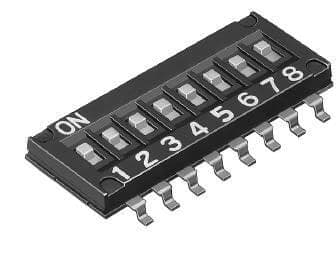

Product Images
