SPST DIP switch featuring a slide actuator, designed for surface mount applications with a 1.27mm terminal pitch. This unsealed switch offers 2 circuits and 2 positions, rated for 25mA at 24VDC, with both electrical and mechanical life cycles of 1000. Operating temperature range is -20°C to 70°C, and it is RoHS compliant.
PackageDIP
Current Rating25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron A6H-2101 technical specifications.
General
Actuator Length
0mm
Actuator Type
Slide (Standard)
Package/Case
DIP
Current Rating
25mA
Electrical Life
1000Cycles
Length
0.148inch
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000Cycles
Mount
Surface Mount
Number of Circuits
2
Number of Positions
2
Orientation
Straight
Package Quantity
125
Packaging
Rail/Tube
Pitch
0.05inch
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
A6H
Terminal Pitch
1.27mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Weight
0.06g
Compliance
RoHS
Compliant
Datasheet
Omron A6H-2101 Datasheet
Download the complete datasheet for Omron A6H-2101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

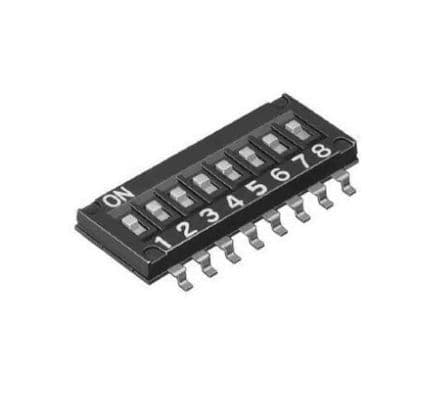

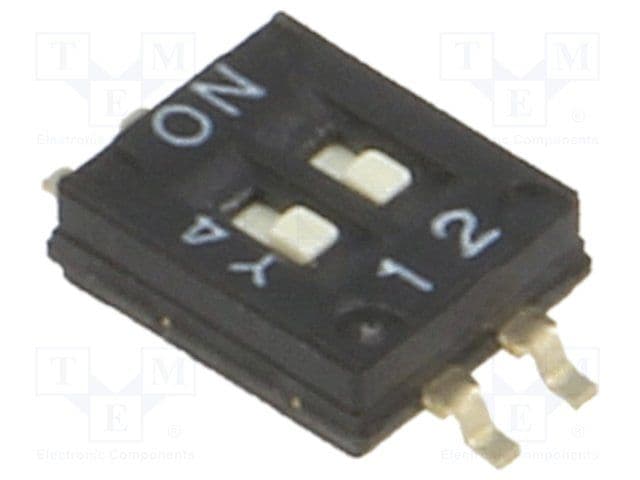

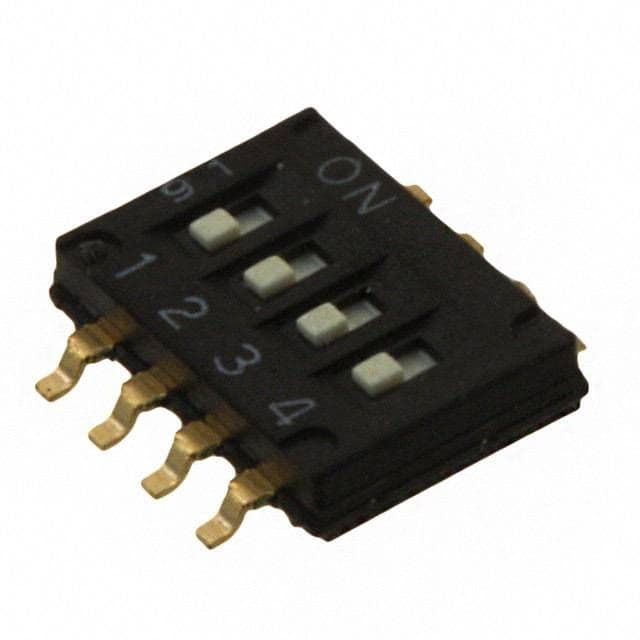

Product Images
