SPST DIP switch featuring a slide actuator, designed for surface mount applications with gull wing termination. This unsealed switch offers 10 circuits and 10 positions, with a contact current rating of 25mA at 24VDC. It boasts gold-plated contacts for enhanced conductivity and durability, and a terminal pitch of 2.54mm. Operating within a temperature range of -20°C to 70°C, the component has an electrical and mechanical life of 1000 cycles.
PackageDIP
Current Rating25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron A6S-0101-H technical specifications.
General
Actuator Length
0mm
Actuator Type
Slide (Standard)
Package/Case
DIP
Contact Current Rating
25mA
Contact Material
Gold
Contact Plating
Gold
Current Rating
25mA
Electrical Life
1000Cycles
Length
1.037inch
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000Cycles
Mount
Surface Mount
Number of Circuits
10
Number of Positions
10
Orientation
Straight
Package Quantity
18
Packaging
Rail/Tube
Pitch
0.1inch
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
A6S-H
Terminal Pitch
2.54mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Weight
0.87g
Compliance
RoHS
Compliant
Datasheet
Omron A6S-0101-H Datasheet
Download the complete datasheet for Omron A6S-0101-H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

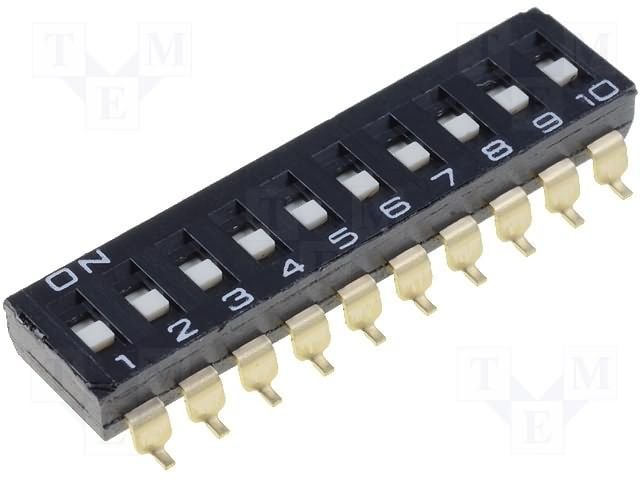

Product Images
