SPST DIP switch featuring a standard actuator and gull wing termination for surface mounting. Offers a 25mA contact current rating at 24VDC, with gold-plated contacts for reliable performance. Designed with a 2.54mm terminal pitch, this unsealed switch provides 2 positions across 2 circuits and boasts a mechanical and electrical life of 1000 cycles. Operating temperature range is -20°C to 70°C.
PackageDIP
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron A6S-2101-H technical specifications.
General
Actuator Length
0mm
Actuator Type
Standard
Package/Case
DIP
Contact Current Rating
25mA
Contact Material
Gold
Contact Plating
Gold
Electrical Life
1000Cycles
Length
6.02mm
Max Current Rating
25mA
Max Operating Temperature
70°C
Mechanical Life
1000Cycles
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mount
Surface Mount
Number of Circuits
2
Number of Positions
2
Orientation
Straight
Package Quantity
76
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
A6S-H
Terminal Pitch
2.54mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Weight
0.25g
Compliance
RoHS
Compliant
Datasheet
Omron A6S-2101-H Datasheet
Download the complete datasheet for Omron A6S-2101-H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

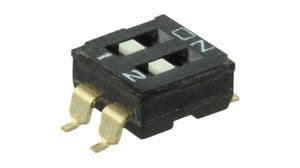

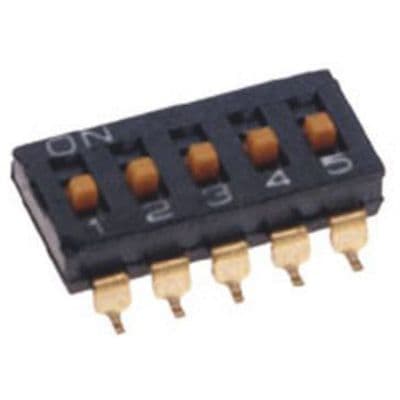

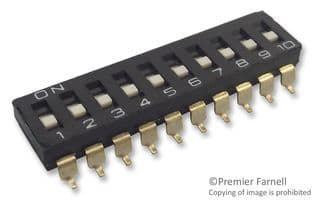

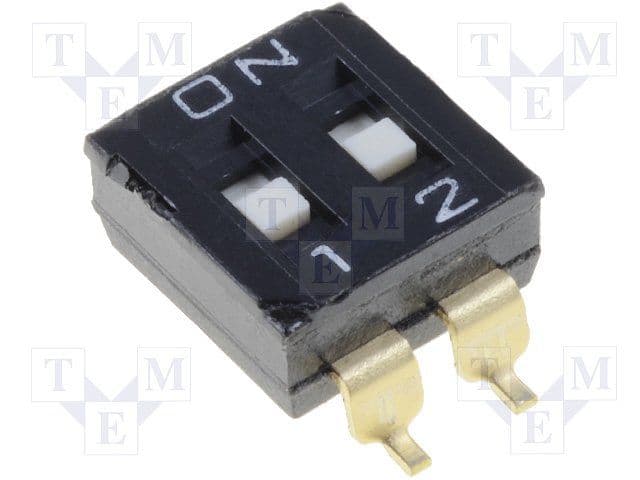

Product Images
