Surface mount SPST DIP switch featuring 6 circuits and 6 positions. Offers a 25mA contact current rating at 24VDC with gold-plated contacts for reliable performance. Designed with a straight orientation and gull wing termination, this switch has a terminal pitch of 2.54mm and a mechanical and electrical life of 1000 cycles. Operating temperature range is -20°C to 70°C.
PackageDIP
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron A6S-6101-H technical specifications.
General
Actuator Length
0mm
Actuator Type
Standard
Package/Case
DIP
Contact Current Rating
25mA
Contact Material
Gold
Contact Plating
Gold
Depth
9.8mm
Electrical Life
1000Cycles
Length
16.18mm
Max Current Rating
25mA
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000Cycles
Mount
Surface Mount
Number of Circuits
6
Number of Positions
6
Orientation
Straight
Package Quantity
28
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
A6S-H
Terminal Pitch
2.54mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Weight
0.58g
Compliance
RoHS
Compliant
Datasheet
Omron A6S-6101-H Datasheet
Download the complete datasheet for Omron A6S-6101-H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

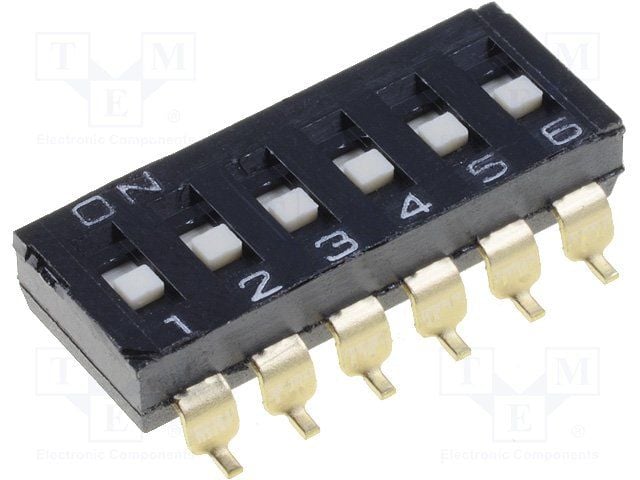

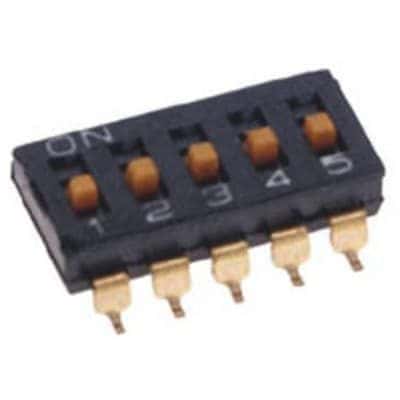

Product Images
