Surface mount DIP switch featuring SPST throw configuration and 9 circuits, each with 9 positions. Offers a 25mA contact current rating and 24VDC voltage rating, with gold-plated contacts for durability. Designed for through-hole mounting with a 2.54mm terminal pitch and gull wing termination, this unsealed rotary and slide actuator switch has an electrical and mechanical life of 1000 cycles. Operating temperature range is -20°C to 70°C.
PackageDIP
Current Rating25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron A6S-9101-H technical specifications.
General
Actuator Length
0mm
Actuator Type
Standard
Package/Case
DIP
Contact Current Rating
25mA
Contact Material
Gold
Contact Plating
Gold
Current Rating
25mA
Electrical Life
1000Cycles
Max Operating Temperature
70°C
Mechanical Life
1000Cycles
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mount
Surface Mount
Number of Circuits
9
Number of Positions
9
Orientation
Straight
Package Quantity
20
Packaging
Rail/Tube
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
A6S-H
Terminal Pitch
2.54mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Compliance
RoHS
Compliant
Datasheet
Omron A6S-9101-H Datasheet
Download the complete datasheet for Omron A6S-9101-H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

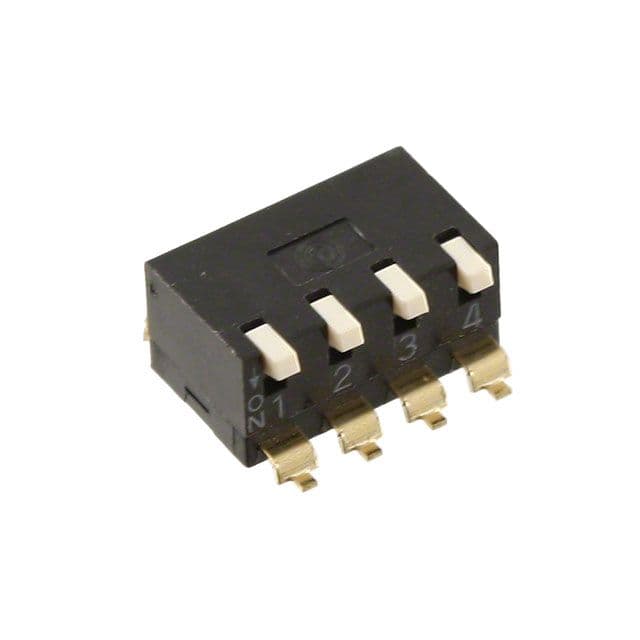

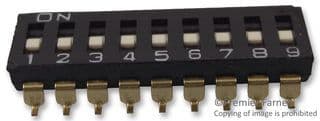

Product Images
