10-position, SPST DIP switch featuring a standard slide actuator. Rated for 25mA at 24VDC, this through-hole mount component offers 1000 cycles of electrical and mechanical life. With gold-plated contacts and PC pin termination, it provides a 2.54mm terminal pitch and is RoHS compliant. Designed for PCB mounting, this washable switch operates within a temperature range of -20°C to 70°C.
PackageDIP
Current Rating25mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Omron A6T-0102 technical specifications.
General
Actuator Length
0mm
Actuator Type
Slide (Standard)
Package/Case
DIP
Contact Current Rating
25mA
Contact Material
Gold
Contact Plating
Gold
Current Rating
25mA
Electrical Life
1000Cycles
Height
4.2mm
Lead Free
Lead Free
Length
26.34mm
Max Operating Temperature
70°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000Cycles
Min Operating Temperature
-20°C
Mount
Through Hole, PCB
Number of Circuits
10
Number of Poles
10
Number of Positions
10
Number of Switches
10
Orientation
Straight
Package Quantity
18
Packaging
Rail/Tube
Pitch
0.1inch
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
A6T
Terminal Pitch
2.54mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
Yes
Weight
0.96g
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Omron A6T-0102 Datasheet
Download the complete datasheet for Omron A6T-0102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

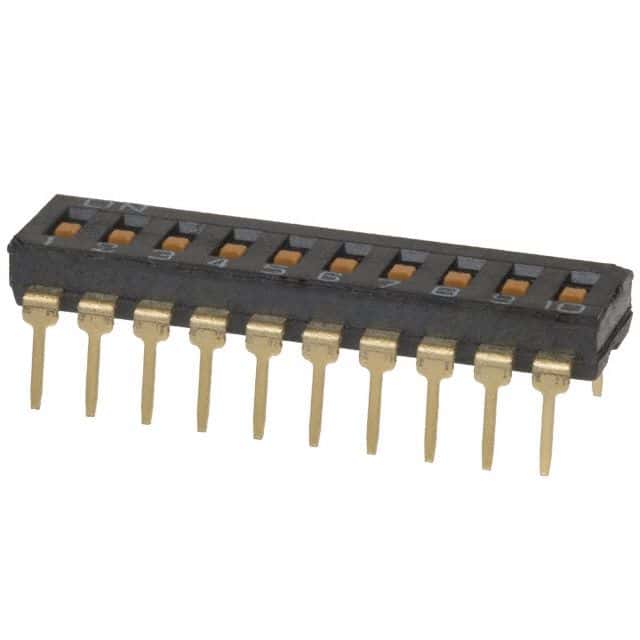

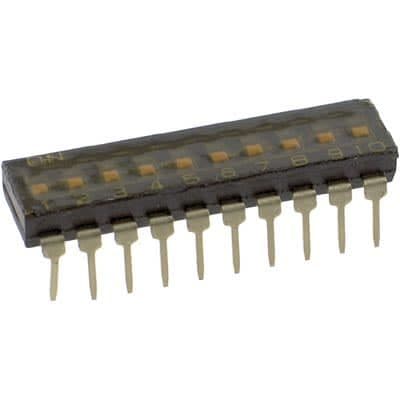

Product Images
