SPST DIP switch featuring through-hole mounting and straight orientation. This unsealed rotary and slide actuator switch offers a 25mA contact current rating at 24VDC, with gold-plated gold contacts for reliable performance. Designed for a mechanical and electrical life of 1000 cycles, it operates within a temperature range of -20°C to 70°C and has a terminal pitch of 2.54mm.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron A6T-1101 technical specifications.
General
Actuator Length
0mm
Actuator Type
Standard
Package/Case
DIP
Contact Current Rating
25mA
Contact Material
Gold
Contact Plating
Gold
Depth
7.62mm
Electrical Life
1000Cycles
Length
3.48mm
Max Current Rating
25mA
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000Cycles
Mount
Through Hole
Number of Circuits
1
Number of Positions
1
Orientation
Straight
Package Quantity
130
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
A6T
Terminal Pitch
2.54mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Compliance
RoHS
Compliant
Datasheet
Omron A6T-1101 Datasheet
Download the complete datasheet for Omron A6T-1101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

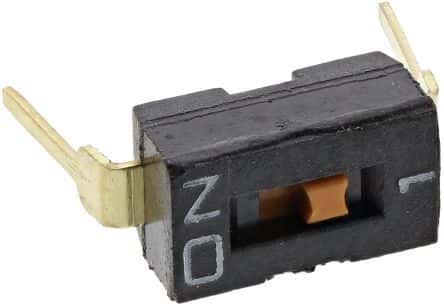

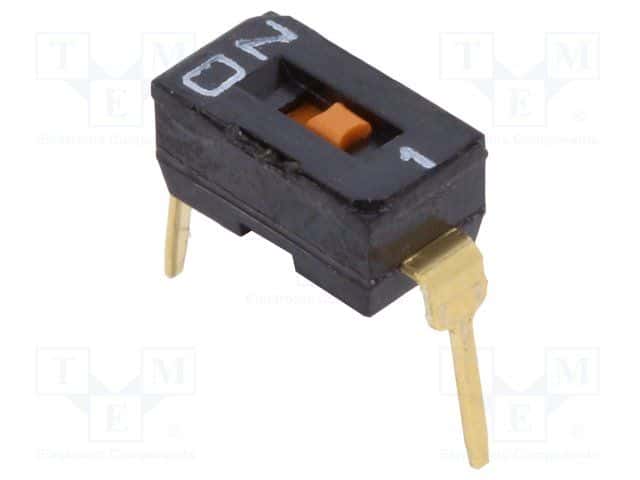

Product Images
