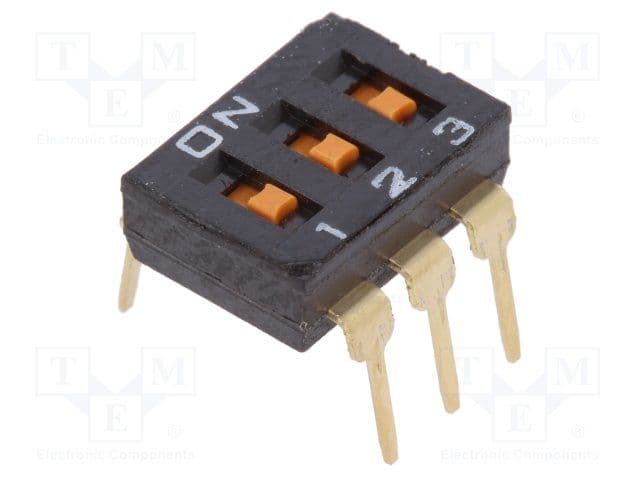

SPST DIP switch with a straight, through-hole mount and a 2.54mm terminal pitch. Features a slide actuator, 3 positions, and 3 circuits. Rated for 25mA at 24VDC with a gold contact material and plating. Offers electrical and mechanical life of 1000 cycles, operating between -20°C and 70°C. RoHS compliant.
Current Rating25mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron A6T-3101 technical specifications.
General
| Actuator Length | 0mm |
| Actuator Type | Slide (Standard) |
| Contact Current Rating | 25mA |
| Contact Material | Gold |
| Contact Plating | Gold |
| Current Rating | 25mA |
| Electrical Life | 1000Cycles |
| Length | 0.337inch |
| Max Operating Temperature | 70°C |
| Mechanical Life | 1000Cycles |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 24V |
| Mount | Through Hole |
| Number of Circuits | 3 |
| Number of Positions | 3 |
| Orientation | Straight |
| Package Quantity | 55 |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | A6T |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | No |
Compliance
| RoHS | Compliant |
Datasheet
Omron A6T-3101 Datasheet
Download the complete datasheet for Omron A6T-3101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
