SPST DIP switch featuring a slide actuator and through-hole mounting. Offers a 25mA contact current rating at 24VDC, with gold-plated contacts for enhanced reliability. This unsealed, straight-oriented component has a terminal pitch of 2.54mm and a mechanical/electrical life of 1000 cycles. Operating temperature range is -20°C to 70°C.
PackageDIP
Current Rating25mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron A6T-4101 technical specifications.
General
Actuator Length
0mm
Actuator Type
Slide (Standard)
Package/Case
DIP
Contact Current Rating
25mA
Contact Material
Gold
Contact Plating
Gold
Current Rating
25mA
Electrical Life
1000Cycles
Height
4.2mm
Lead Free
Lead Free
Length
0.437inch
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000Cycles
Mount
Through Hole
Number of Circuits
4
Number of Positions
4
Orientation
Straight
Package Quantity
42
Packaging
Rail/Tube
Pitch
0.1inch
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
A6T
Terminal Pitch
2.54mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Weight
0.44g
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Omron A6T-4101 Datasheet
Download the complete datasheet for Omron A6T-4101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

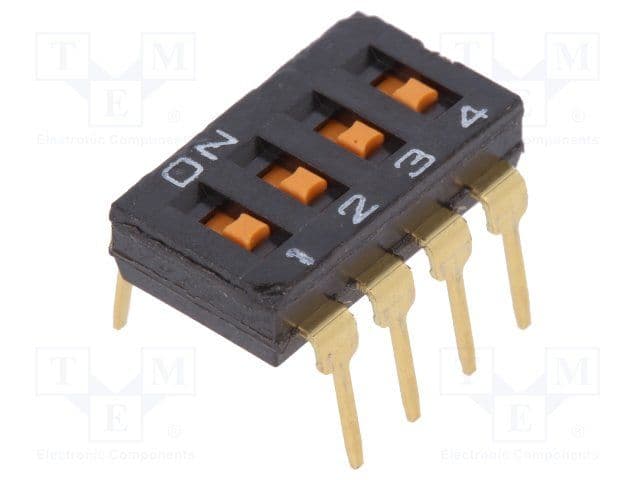

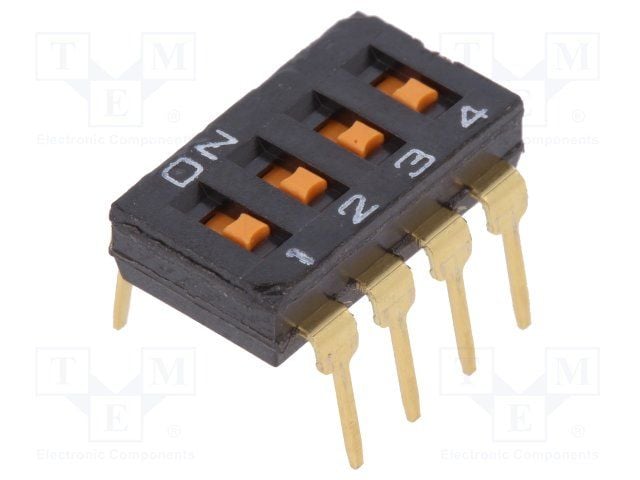

Product Images
