The Omron A6TN-6104 is a 6-position slide actuator DIP switch with a current rating of 25mA and a maximum operating temperature of 85°C. It is designed for through hole mount and has a terminal pitch of 2.54mm. The switch is RoHS compliant and has a packaging quantity of 25 pieces per rail/Tube. It has a DC rated voltage of 24V and is washable.
Current Rating25mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron A6TN-6104 technical specifications.
General
| Actuator Length | 1mm |
| Actuator Type | Slide (Standard) |
| Current Rating | 25mA |
| Electrical Life | 1000Cycles |
| Max Current Rating | 25mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 24V |
| Mount | Through Hole |
| Number of Positions | 6 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | A6TN |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | Yes |
| Weight | 0.84g |
Compliance
| RoHS | Compliant |
Datasheet
Omron A6TN-6104 Datasheet
Download the complete datasheet for Omron A6TN-6104 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

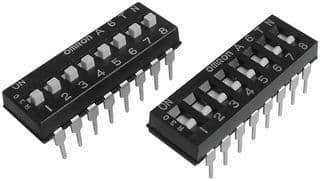

Product Images
