6-position, SPST DIP switch featuring a straight, through-hole mount with a 2.54mm terminal pitch. This rotary and slide actuator switch offers a 25mA contact current rating at 24V DC, with gold-plated gold contacts for enhanced durability. Designed for a 1000-cycle electrical and mechanical life, it operates within a -20°C to 70°C temperature range.
Current Rating25mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron A6TR-6104 technical specifications.
General
Actuator Length
0.9mm
Actuator Type
PIANO
Contact Current Rating
25mA
Contact Material
Gold
Contact Plating
Gold
Current Rating
25mA
Electrical Life
1000Cycles
Height
4.2mm
Lead Pitch
2.54mm
Length
15.14mm
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000Cycles
Mount
Through Hole
Number of Poles
6
Number of Positions
6
Orientation
Straight
Package Quantity
31
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
A6TR
Terminal Pitch
2.54mm
Termination
Through Hole
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Weight
0.76g
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Omron A6TR-6104 Datasheet
Download the complete datasheet for Omron A6TR-6104 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

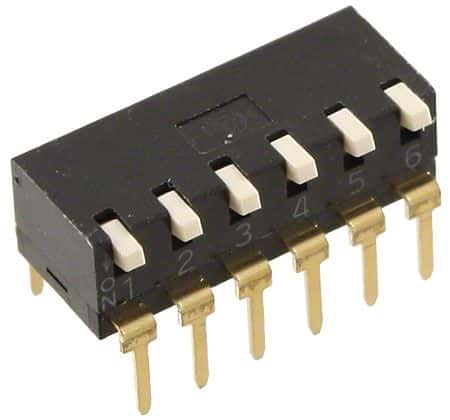

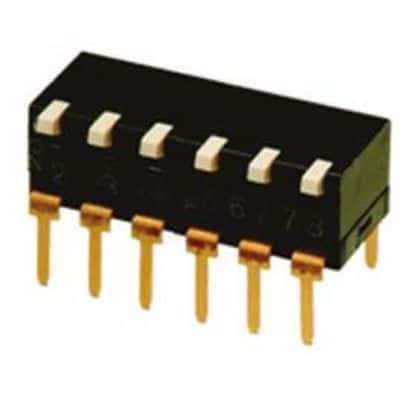

Product Images
