Through-hole tactile switch featuring a standard, blue actuator with 0.8mm length and 0.3mm travel. Rated for 24V DC and 50mA, this SPST switch offers 1 million electrical and mechanical cycles. Contact material includes gold and silver with silver and gold plating, operating at 1.27N force. Dimensions are 12mm length, 12mm width, and 4.3mm height, with a temperature range of -25°C to 70°C.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron B3F-5101 technical specifications.
General
| Actuator Color | Blue |
| Actuator Length | 0.8mm |
| Actuator Type | Standard |
| Contact Current Rating | 50mA |
| Contact Material | Gold, Silver |
| Contact Plating | Silver, Gold |
| Current Rating | 50mA |
| Electrical Life | 10000000Cycles |
| Height | 4.3mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 12mm |
| Max Operating Temperature | 70°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 24V |
| Mount | Through Hole |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 1.27N |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | B3F |
| Switch Function | Off-Mom |
| Switch Travel | 0.3mm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Weight | 0.85g |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron B3F-5101 Datasheet
Download the complete datasheet for Omron B3F-5101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

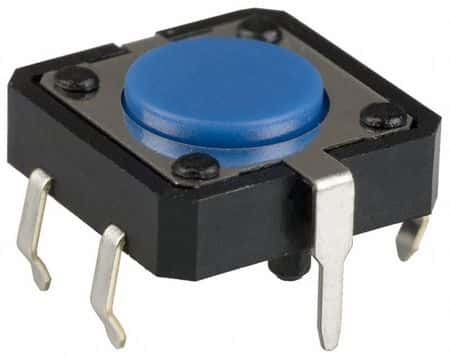

Product Images
