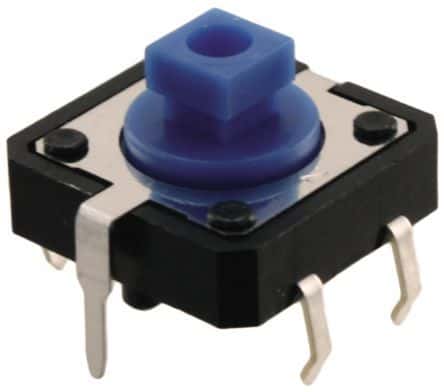

Tactile switch, SPST-NO, 50mA, 24V DC. Features a blue plunger actuator with 3mm length, 0.3mm travel, and 1.27N operating force. Offers 10 million electrical and mechanical life cycles. Through-hole mount with PC pin termination. Non-illuminated and illuminated options available. RoHS compliant.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron B3F-5150 technical specifications.
General
| Actuator Color | Blue |
| Actuator Length | 3mm |
| Actuator Type | PLUNGER |
| Contact Current Rating | 50mA |
| Contact Material | Gold, Silver |
| Contact Plating | Silver, Gold |
| Current Rating | 50mA |
| Depth | 12mm |
| Electrical Life | 10000000Cycles |
| Height | 7.3mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 12mm |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 1.27N |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | B3F |
| Switch Function | Off-Mom |
| Switch Travel | 0.3mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Weight | 0.85g |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron B3F-5150 Datasheet
Download the complete datasheet for Omron B3F-5150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
