SPST tactile switch with a beige, standard round button actuator. Features a 50mA DC current rating at 24VDC, 1.57N operating force, and 0.25mm switch travel. This non-illuminated, sealed surface mount component offers 50,000 electrical and mechanical cycles, IP67, waterproof, and dust-tight ratings. Dimensions are 6.5mm L x 6mm W x 3.1mm H, with a 7mm depth.
PackageSMD/SMT
Current Rating50mA
MountingSealed, Surface Mount
Quick Jump:
Technical Specifications
Omron B3SN-3012 technical specifications.
General
Actuator Color
Beige
Actuator Type
Standard
Package/Case
SMD/SMT
Contact Current Rating
50mA
Contact Material
Gold, Silver
Contact Plating
Gold
Current Rating
50mA
Depth
7mm
Electrical Life
50000Cycles
Height
3.1mm
Illumination Type
Non-Illuminated, Illuminated
Length
6.5mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Max Voltage Rating (DC)
24V
Mechanical Life
50000Cycles
Min Operating Temperature
-20°C
Mount
Sealed, Surface Mount
Number of Poles
1
Operating Force
1.57N
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
B3SN
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
SMD/SMT
Throw Configuration
SPST
DC Rated Voltage
24V
Weight
0.007055oz
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Omron B3SN-3012 Datasheet
Download the complete datasheet for Omron B3SN-3012 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

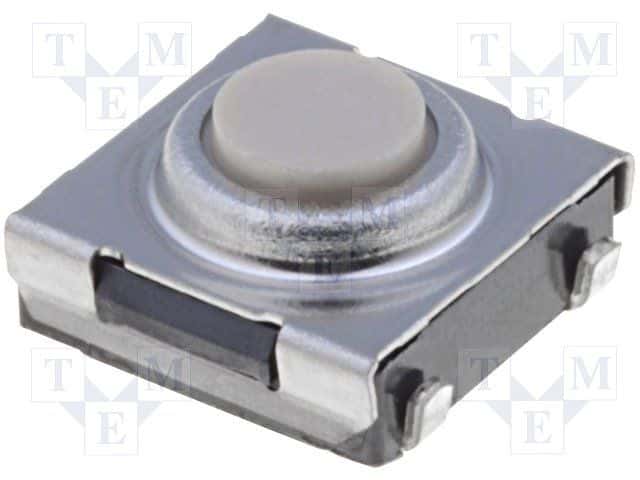

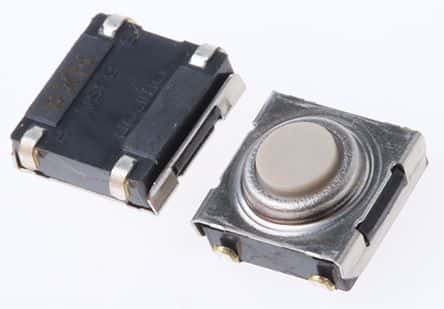

Product Images
