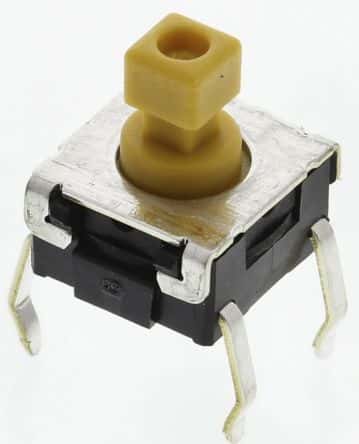

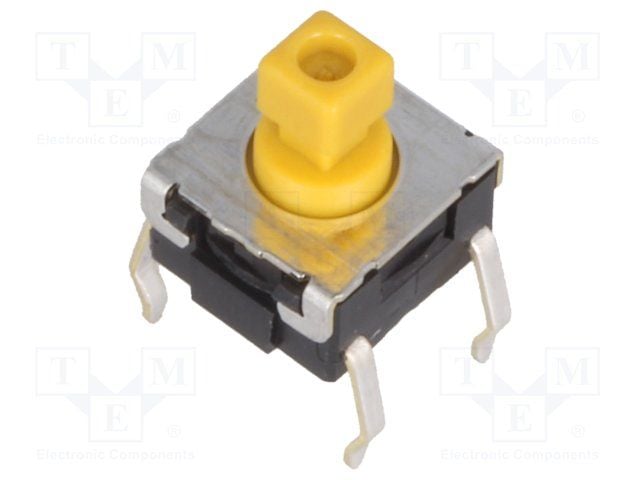

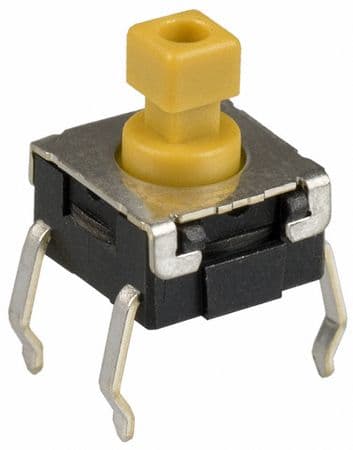

Tactile switch featuring a yellow plunger actuator with a 3.9mm length. This non-illuminated, through-hole mount switch offers a 1-pole, SPST configuration with a 0.25mm travel. Rated for 24V DC and 50mA, it boasts silver contacts and a mechanical life of 1,000,000 cycles. The component is IP67, waterproof, and dust-tight, operating between -25°C and 70°C.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron B3W-1052 technical specifications.
General
Actuator Color
Yellow
Actuator Length
3.9mm
Actuator Type
PLUNGER
Contact Current Rating
50mA
Contact Material
Silver
Contact Plating
Silver
Current Rating
50mA
Depth
6mm
Height
11.6mm
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
6.6mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000000Cycles
Mount
Through Hole
Number of Poles
1
Operating Force
2.26N
Orientation
Straight
Package Quantity
100
Packaging
Bag
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
B3W
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
24V
Weight
0.3g
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Omron B3W-1052 Datasheet
Download the complete datasheet for Omron B3W-1052 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
